Fixed Angle Notching Machine
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

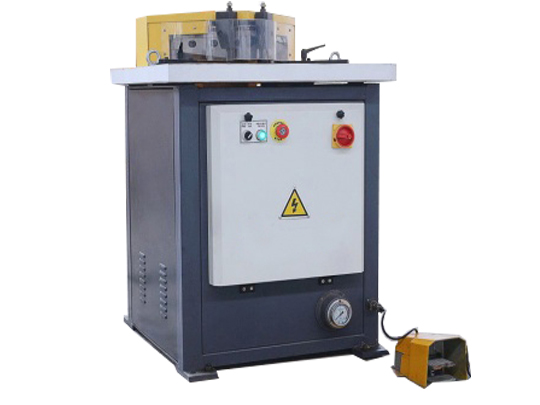

Fixed Angle Notching Machine

Fixed Angle Notching Machine

1. Used for sheet metal processing and edge or the Angle of the triangle aperture in electrical appliances.

2. Professional tools, long life, suitable for cutting carbon steel and stainless steel plate.

Our angle notching machine is a special kind of cutting equipment, used for sheet metal processing and edge or the Angle of the triangle aperture, widely used in electrical appliances, metal cabinet put oneself in another's position, ventilation equipment, kitchen equipment, decorative materials, sheet metal processing, etc. Our hydraulic system is reliable, specializing in the production of customized storage tanks, using domestic brands of long source pumps, and Bosch Rexroth valves. Professional tools, long life, suitable for cutting carbon steel and stainless steel plate.

STANDARD EQUIPMENT

1. 90° fixed-angle cutting

2. The main structure of the machine is composed of whole welded steel plate, which means durable and robust.

3. Widely used in many fields of automobile manufacturing

4. Single-stage & step-stages operation function can be selected

5. Positioning device of variable-angle-bit

6. Centralized lubricating system

DETAILED PICTURES

function of notching machinefixed-angle-notching-machinefixed-angle-notching-machine

Item Unit QF28Y-4*200 QF28Y-4*200B QF28Y-6*200 QF28Y-6*220B
Min.Notching thickness mm 0.3 0.3 0.3 0.3
Max. Notching Thickness Carbon steel mm 4.0 4.0 4.0 4.0
Stainless steel mm 2.0 2.0 3.25 3.25
Notching Length mm 200 200 200 220
Stroke mm 50 50.0 60 60
Notching Angle Range ° 90°(Fixed) 30°-130°(variable) 90°(Fixed) 30°-145°(variable)
The speed of Notching spm 45 45.0 40 40
System pressure mpa 20 20 20 20
Blade Gap Adjustment Automatic Automatic Automatic Automatic
Motor Kw 3 4 5.5 7.5
Powe Requirement Voltage 220V(380)/3-Ph 220V(380)/3-Ph 220V(380)/3-Ph 220V(380)/3-Ph
Dimension F.B. mm 1350 1450 1550 1550
L.R. mm 1400 1550 1400 1600
Height mm 1450 1550 1580 1650
Gross Weight Kg 1650 2150 1950 3850

Serial No.

Part Description

Brief instruction

Country of origin

1

Electrical components

Schneider Electrical

French

2

Main Motor

Siemens

Germany

3

Oil Pump

SUNNY

America

4

Seal Ring

NOK

Japan

5

Foot switch

KACON

Korea

6

Foot pedal switch

China famous brand

China

7

Safe cover

GLDMA

China

8

Frequency convertor

GLDMA

China

9

Shearing & Punching parts

GLDMA

China

10

Electricity leakage protection

■Yes□No

11

Safety standards

■CE□CSA■NR-12□OSHA

CONTACT US

+86 18055583445

+86-0555-2222129

Bowang New Town area of new materials industrial park, Ma'anshan city, Anhui Province, China

admin@gldma.com

http://www.gldma.com/products/iron-workers/fixed-angle-notching-machine.html

Localisation : Ma'anshan City, Anhui Province Dangtu County Bowang New Town area of new materials industrial park , 243100 Ma'anshan City,
Personne à contacter : gldma2018 gldma2018, +86 555 2222129
