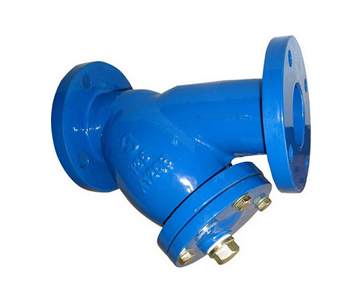

Flanged Y Type Strainer
Y strainer flange type strainer is devices for removing impurities in the medium by means of a perforated or wire mesh straining element.
They are usually installed at the inlet of a pressure-reducing valves, a pressure relief valve, or a fixed water-level valve to improve the cleaness in the medium and prolong the life of valves, pumps, meters and other equipments. The common body material of Flanged Y Type Strainers includes cast iron, cast steel or stainless steel. We can supply different standards(ASME, DIN, BS) Flanged Y Type Strainers to meet the need of different clients.
Different Types of Flanged Y Type Strainer
GIA-1 SS304/SS316 Screen Flanged Y Type Strainer
GID-1 DIN PN10 Flanged Y Type Strainer
GID-2 PN10/16 Italy Design Flanged Y Type Strainer
GWA-1 WCB Body Flanged Y Type Strainer
GSD-1 SS Body Flanged Y Type Strainer
Flanged Y Type Strainer Technical Specifications
Class |
Nominal diameter |
Unit |
Main connection dimension |
|||
Inch |
DN |
L |
H |
h1 |
||
150Lb (2.0Mpa) |
1/2" |
15 |
mm |
140 |
70 |
150 |
3/4" |
20 |
mm |
140 |
70 |
150 |
|
1" |
25 |
mm |
150 |
80 |
160 |
|
1-1/4" |
32 |
mm |
180 |
90 |
180 |
|
1-1/2" |
40 |
mm |
200 |
100 |
240 |
|
2" |
50 |
mm |
220 |
130 |
250 |
|
2-1/2" |
65 |
mm |
250 |
165 |
350 |
|
3" |
80 |
mm |
280 |
195 |
390 |
|
4" |
100 |
mm |
320 |
230 |
450 |
|
5" |
125 |
mm |
350 |
300 |
520 |
|
6" |
150 |
mm |
380 |
335 |
580 |
|
8" |
200 |
mm |
480 |
420 |
690 |
|
10" |
250 |
mm |
550 |
500 |
800 |
|
12" |
300 |
mm |
600 |
580 |
950 |
|
14" |
350 |
mm |
640 |
640 |
1150 |
|
16" |
400 |
mm |
800 |
700 |
1360 |
|
18" |
450 |
mm |
860 |
790 |
1480 |
|
20" |
500 |
mm |
900 |
875 |
1650 |
Features and Benefits of Flanged Y Type Strainer
Flanged Y Type Strainers have the characteristics of advanced structure, low resistance, convenient sewage discharge, etc.
Flanged Y Type Strainers are very cost-effective straining solutions in many applications.
Flanged Y Type Strainers are flexible and convenient to install and move, easy to operate and manage.
Flanged Y Type Strainers have high efficiency, long service life, optional filtration accuracy, and complete specifications.
Major Applications of Flanged Y Type Strainer
Y Type Strainers are used in many industries, such as agricultural irrigation, water supply filtration systems, circulating water filtration, petrochemical, electromechanical, and pharmaceutical wastewater ion exchange pretreatment, etc. The Y-type Strainer plays a vital role in the treatment of domestic wastewater and industrial wastewater by virtue of its advantages in design and application.
Y Type Strainer effectively treats a large amount of domestic and industrial sewage in the application of various industries, so that valuable water resources are effectively reused and a large number of water resources are saved. Moreover, the water quality after treatment with the Y Type Strainer not only meets the national emission standards but also achieves the purpose of repeated and recycling use.
