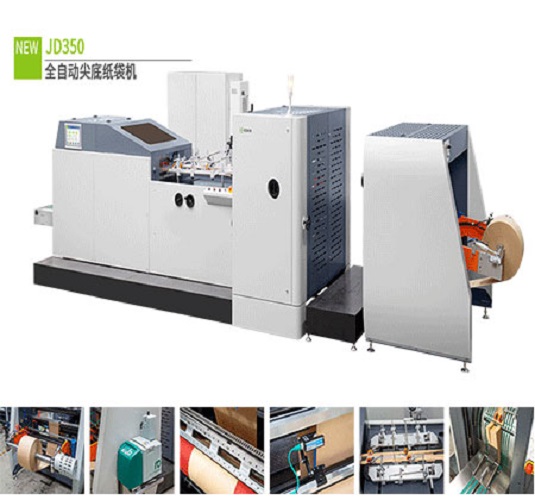

Flat Botton Paper Bag Machine
Prix : 5000-50000USD
This flat bottom paper bag machine is suitable for many kinds of environmental protection rollpaper such as kraft paper, butter paper, food grade film-coated paper medical paper, etc.
The automatic paper bag making machine is piercing, paper edge gluing, color standard length fixing ( or fixed length ), raw material forming, length fixing breaking, bottom folding, bottom gluing, forming, and other processes in one line.
This fully automatic paper bag machine adopts a motion controller and servo motor programming which is easy to operate, efficient in production and stable in operation.
Environmental protection paper bags of various specifications and sizes, such as sharp bottomed paper bags, bread bagswith windows, leisure food bags, dry fruit bags, etc can be produced by this paper bag automatic machine.
Specification of Flat Botton Paper Bag Machine
|
Technical parameters |
|
|
|
Model |
RKJD-350 |
RKJD-250 |
|
Bag making speed |
50-680pcs/min |
50-320pcs/min |
|
Paper Bag Length ( L ) |
155-715mm |
110-450 |
|
Paper Bag Width ( W ) |
70-350mm |
70-250mm |
|
insert Size ( WS ) |
20-120mm |
20-120mm |
|
Step Height |
15/20mm |
15/20mm |
|
Paper thickness |
35-80g/m |
35-80g/m |
|
Paper roll width |
100-980mm |
100-760mm |
|
Paper roll diameter |
200-1000mm |
200-1000mm |
|
Inner diameter of paper core |
76mm |
76mm |
|
Total power |
26KW |
30KW |
|
Working ar source |
>0.12m/min 0.6MPa |
>0.12m/min 0.6MPa |
|
Total Weight |
6500kg |
4500kg |
|
Overall dimensions |
7300x2300x1900mm |
7000x2000x1900mm |
If you want to know more about packaging machinery wholesale, please visit our website.
