Flat Ferrite Pot Magnets With Threaded Hole

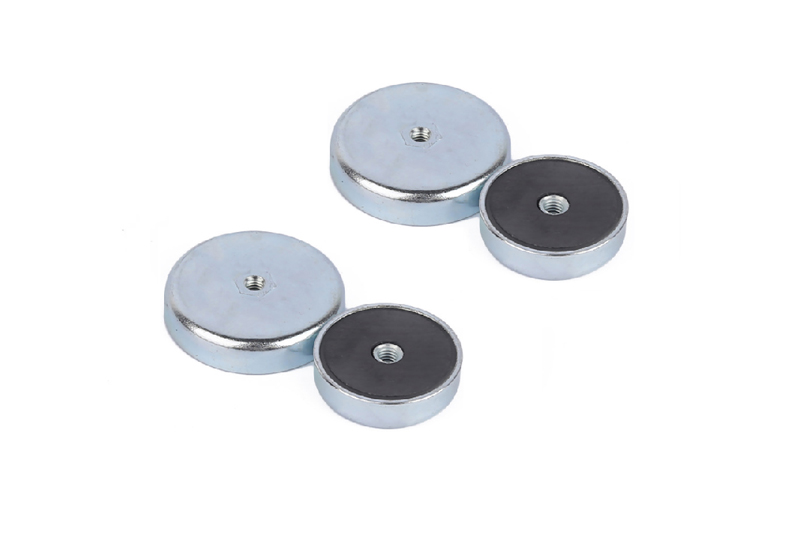

Ferrite cup magnets include various designs and offer different solutions. Different designs adopted different shapes of the ferrite cup magnet. This is a hard ferrite flat cup magnet with an internal threaded screw hole in the middle. Such flat type ferrite cup magnets are assembled with a ring shape ceramic magnet and steel cup with a female threaded socket in the middle. NdFeB ring magnet can be adopted for stronger magnetic strength.
With the threaded mounting hole, the fastener is not in direct contact with the ferrite magnet, and the magnet will not be damaged due to excessive wear. It is also easy to use and can be fixed with only one screw.
The iron shell not only protects the magnet but also guides the magnetic line of force of the magnet to one side, which greatly increases the magnetic force. House with a steel shell, the Ferrite Pot Magnets are stronger and more durable.
Parameters Of Standard Common Flat Ferrite Magnets With Internal(female)threaded Hole
tem Code |
Dimension |
Pull Force(N) |
|||
D(mm) |
H(mm) |
d(mm) |
M(mm) |
||
Ferrite-H-25 |
25 |
7 |
5.2 |
M4 |
36 |
Ferrite-H-32 |
32 |
7 |
5.2 |
M4 |
75 |
Ferrite-H-40 |
40 |
8 |
9.5 |
M5 |
90 |
Ferrite-H-50 |
50 |
10 |
12 |
M6/M8 |
170 |
Ferrite-H-63 |
63 |
14 |
13 |
M8 |
350 |
Ferrite-H-80 |
80 |
18 |
14.5 |
M8/M10 |
550 |
Ferrite-H-80-1 |
80 |
20 |
14.5 |
M8/M10 |
550 |
Contact us now for common and custom ferrite flat cup magnet with threaded screw socket, for the strongest ones, please check our neodymium flat pot magnet with a threaded hole.
Application Of The Ferrite Flat Pot Magnet With Threaded Mounting Hole:
The flat ferrite pot magnets with internal(female) threaded sockets can be used for clamping of the ceiling, fixing signs, banners, and mounting fixtures, and lighting exhibition equipment. Strong flat ferrite pot magnets with internally threaded holes can be used for magnet fishing.
As a china magnetic hooks factory, we provide some selection on size and magnetic force for the flat pot(cup) magnets of ferrite with an internal threaded mounting hole as below.
