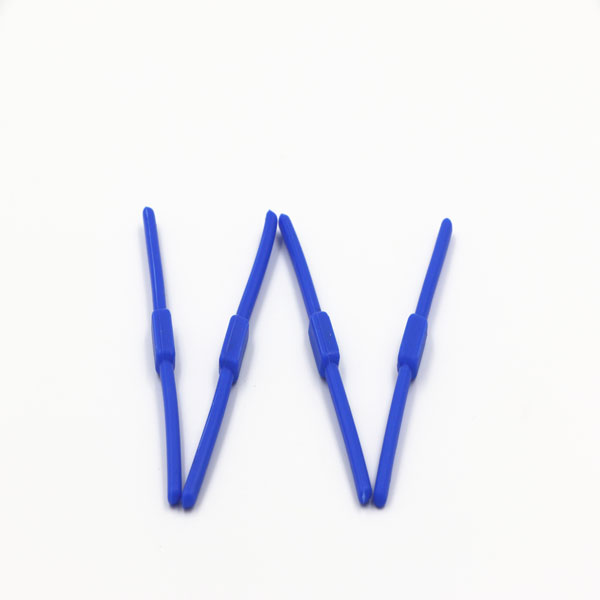

Flexible RFID UHF silicone spring laundry tag
Descriptions of RFID Laundry Tag
Silicone RFID Laundry tag or RFID clothing tag is a nontransferable tag with a securely sealed RFID inlay inside to reliably store and transfer data. It is resistant of high temperature and harsh environment and particularly used in line management and laundry chains. Tags offered in different size, and can be affixed by sewing, gluing, be pinned or tied on. RFID UHF laundry tag is a waterproof RFID tag.
Applications of UHF RFID Laundry Tag
The tag is designed based on spring and silicone base material, small size, great reading rate and perfect reading distance reaching 6 meters. Also it is with water-proof, flexible and high washing cycle ability up to 225 wash or dry cleaning cycles for use in any hotel, spa, hospital, retirement home, sports club laundry and linen management application.
The tag can be widely applied to textile industries including apparel, leather garment, towel, bedding and clothing, etc.
Specifications of RFID UHF Laundry Tag
RFID protocol |
ISO/IEC 18000-6 Type C (EPC Gen2) |
|
Material |
Silicone |
|
Dimension |
88(W) x 4.0(D) x 4.0(H)mm |
|
Weight |
1.85g |
|
Operating frequency |
860– 960 MHz |
|
IC |
Alien Higgs-3 |
|
EPC memory |
96 bits to 480 bits |
|
User memory |
512 bits |
|
Reading range |
Up to 7m |
|
Installation |
Sewing or insert |
|
Lifetime |
225 washing cycles or 3 years, whichever comes first. |
|
Environmental Resistance |
|
|
Washing method |
Laundry, Dry cleaning |
|
Water Extraction Pressure |
60 bar |
|
Water Resistance |
Yes |
|
Chemical Resistance |
Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali |
|
Heat Sterilization |
125 ºC for 15-20 minutes - 150 cycles |
|
Heat Resistance |
Dry cleaning |
85 ºC (up to 60 min.) or 120ºC (up to 30 min.) |
Ironing |
230ºC (up to 60 sec. with press cloth) |
|
Humidity / Temperature |
Operating |
-20 to 50 ºC , 10 to 95%RH |
|
Storage |
-40 to 55 ºC , 8 to 95%RH |
We are professional laundry RFID tag manufacturers and we can provide you high-quality UHF RFID laundry tag.
As a full-service smart card factory with over 18 years export experience, Star Trend ships millions of card every year to more than 80 countries worldwide.
Star Trend is committed to provide an end-to-end service including manufacturing, personalization and distribution. We know the customer's request very well, especially as quality, cost and timing for importers and distributors.
We know how to support customers to make everything running smooth - to get repeat orders, to gain the bidding and to expand their business.
Applications of rfid technology:
RFID plastic card, RFID wristbands and RFID tags have been used in libraries, amusement parks, stadiums, sports competitions, music performances, exhibitions, logistics and transportation warehouses, hotels, laundries, bus/metro, plantations, livestock farms, production lines, etc. They are continuously updated to become the core of the future development of the I.O.T. (Internet of Things).
