Flexible rubber coupling

flexible rubber coupling

Oldham coupling
-Screw fixing type
-Good high torque rigidity
-Allowable axis deviation (excellent) and parallel offset

Introduction

Coupling is used for connecting the two different institution shaft make common rotation in transmission torque of mechanical parts. In high-speed overloaded power transmission, some couplings and buffer, vibration reduction and enhance the role of shaft system dynamic performance. Coupling by two and a half parts, respectively with ZhuDongZhou and driven shafts connection. General power mostly by coupling and working machine connected.

Features

cushion and vibration, can compensate the larger axial displacement, the traces of the radial displacement and angular displacement.

Application

positive and negative to change much, frequent restart high-speed axis.

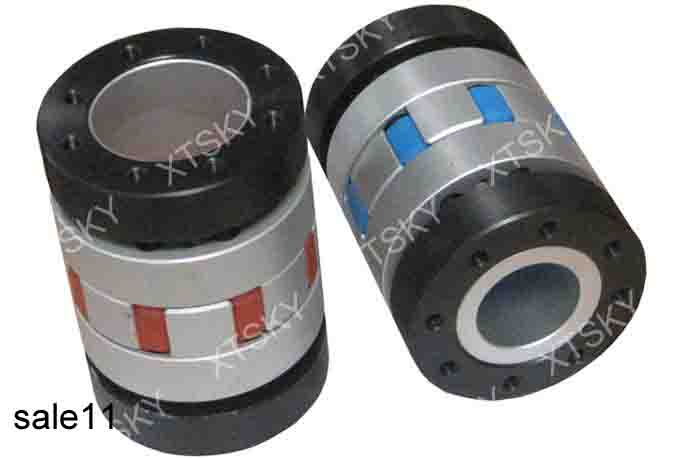

Plum flower form flexible couplings
(1). LM (original ML) plum coupling

(2) LMS (original MLS) plum coupling

(3)LMD (original MLZ) plum

(4)LMZI (MLLI) plum couplings

Characteristics

1.flexible coupling

(1) a integrated metal elastomer,

(2) zero clearance, can turn in synchronicity,

(3) elasticity effect compensation, Angle to the radial and axial deviation,

(4) high torque rigid and excellent sensitivity,

(5) clockwise and counterclockwise rotation characteristics exactly the same,

(6) free maintenance, resisting oil and corrosion resistance,

(7) aluminum alloy and stainless steel material selection,

(8) fixed ways mainly have the top silk and clamping two kinds.

2.The plum flower coupling

(1) compact, toothless gap, provide three different hardness elastomer,

(2) can absorb the vibration, compensate radial and Angle to the deviation,

(3) simple structure, convenient maintenance, facilitating examination,

(4) free maintenance, resisting oil and electrical insulation, working temperature 20 °C - 60 °C;

(5) plum elastomers have four disc, six disc, eight disc and ten disc,

(6) fixed way has a silk, clamping, keyways fixed.

Size
