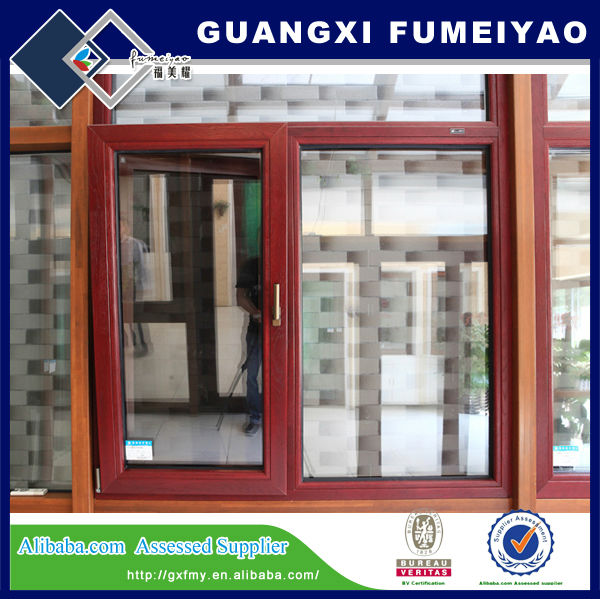

FM90 series aluminum wood french casement window
FM90 series aluminum wood french casement window
Fixed part with open sash design.The wire net is outside open, it is dust , mosquito and theft resistent, also with good ventilation.The window sash is inside open,it is casement and tilt & turn design.
FM90 series aluminum wood casement window and tilt-turn window
Double glazing Aluminium Clad Wooden Window
1) Wood material: Chinese Oak, Larch; US White/ Red Oak
2) Stand Glass: 5+12A+5mm, double tempered double glazed glass, more options see
below table.
3) Hardware: High quality hardware with multi-point locks
4) Lacquer/Paint: Germany brand Remmers
5) Weather strips: EPDM rubber.
Specification |
Product |
FM90 series aluminum wood casement window and tilt-turn window |
|
Material |
Aluminum Profile |
Series: aluminum wood tilt-turn windowSeries |
Aluminum Alloy: 6063T5/6061T5/6063T6 |
||
Thickness: 1.4 mm/ 1.6mm/ 1.8mm/ 2.0mm |
||
Surface Treatment: Customized (Powder-coated/ Anodized /Electrophoresis) |
||
Glass |
Type: Tempered Glass /Floated Glass / Filmed Glass /Low-E Glass etc |
|
a. Single Glass |
||
b. Double Glazing(Insulated glass: 5MM+12A+5MM/6MM+9A+6MM) | ||
c. Triplex Glass(Insulated glass: 5MM+9A+5MM+9A+5MM) |
||
Color: Customized (Clear/Grey/Blue/Green/Reflected etc. ) |
||
Hardware |
1. Hardware Brand: |
|
ROTO,HOBO,GU, SIEGENIA |
||
Others |
Stainless steel screws; EPDM rubber |
|
Mosquito screen available based on request |
Product advantage: |
- The outline frame has used three cavity structures, unique drainage design, which can make sure that water to be smoothly drained off in any circumstances.
- Application of heat insulation aluminum alloy profile, using the rolling way to combine inside and outside aluminum alloy and heat insulation strip together, with heat insulation, warm preservation, energy saving, noise insulation and other advantages.
- By using the high quality EPEM strip, has strong weather resistance, aging resistance, good waterproof performance, heat / cold resistance and chemical corrosion characteristics.
- We have purchased German, Italian high-grade hardware accessories, beautiful shape, flexible operation.
- We have purchased glass door leaf with the glass buckler fixing, easy installation.
Aluminium cross sectional view : |
Color system: |
Hardware : |
Packaging & Shipping
Our Services
- Over 10 years experience in this industry.
- Quick delivery and good quality guarantee.
- Our company manufacture products according to buyer's dimension, quantity, drawing or other related requirements.
Our main product is: |
||||
Sliding Door |
Folding Door |
French Door |
Aluminum Window |
Casement Window |
Top Hung Window |
Sliding Window |
Tilt turn Window |
Louver Window |
Curtain Wall |
Sunroom |
Aluminum Door |
Casement Door |
Skylight window |
Railing |
