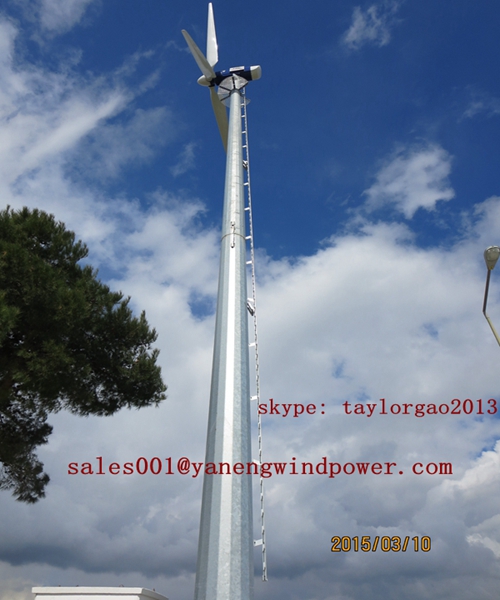

For small power plant,wind power generators 20kw wind turbine , PLC control

Quantité : minimum 1   Prix : 15900$

20kw wind turbine has two models:

- BFD 10-20KW ( wind turbine rotor diameter 10m )

- BFD 12-20KW ( wind turbine rotor diameter 12m)

1). pitch controlled wind turbine 20kw:

- 12m, 10m rotor diameter can choose

- electric pitch control

- electric yawing

- RS 485 Communication, Siemens PLC s7-1200

- NSK bearing

- hydraulic disk brake

2). 20kw pitch controlledl wind turbine technical parameter: (BFD12-20KW)

Model

BFD12-20KW wind turbine

Rotor Diameter(m)

12

Blade Material

Reinforced FPR for wind turbine 20kw

Blade Quantity

3

Rated Wind Speed (m/s)

9

Start-up Wind Speed (m/s)

3

Working Wind Speed (m/s)

3.0-35

Security Wind Speed (m/s)

50

Starting Torque (n/m)

13

Speed Adjustment Mode

Pitch Controlled + Active Yawing

Stop Mode

Feathering propeller , Yawing, Electromagnetic Brake

Generator Type

Permanent Magnet Three Phase AC generator

Rated Voltage

0-700VDC

Rated Power

20KW

Max. Power

35

Localisation : No. 587 JInghua Road, 253000 Dezhou,
Personne à contacter : Taylor Gao, 008615066594737
