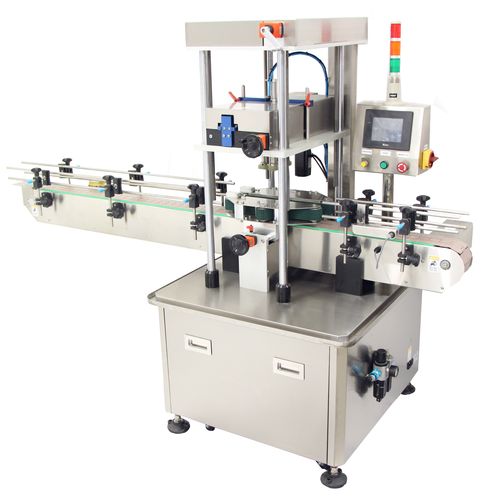

Four-Wheel Servo Capper CW-450S

High Speed in-line capping machine which can be customised to suit the application. It can be integrated into an existing line or supplied as a self contained unit with in-feed, out-feed systems.

FEATURES:

• Servo motor torque capping heads
• PLC Control system combined with HMI(touch screen)
• Speed and torque can be adjusted independently
• Emergency stop and Three -color indicate light
• Continuous capping 「No Bottle,No Cap」Design
• Heavy-duty conveyor by MCC slat top-chain
• Four wheel capping head, available for all kinds of cap
• 20 slots memory recall
• Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement

OPTIONS:

• Bottle infeed and outfeed accumulation tray
• Customized star wheel for bottle position
• Door-open auto-stop comply with safety operation
• Turnkey linkage with capper, labeler and other in-line systems

SPECIFICATIONS:

• Cap type: Screw and press cap
• Standard Cap Size: 25mm – 60mm O.D
• Capping Speed: 30 ~40 Bottles/min
• Air Requirements: 90 PSI @ 3 CFM6Kg
• Power: single phase 110/220VAC, 50/60Hz
