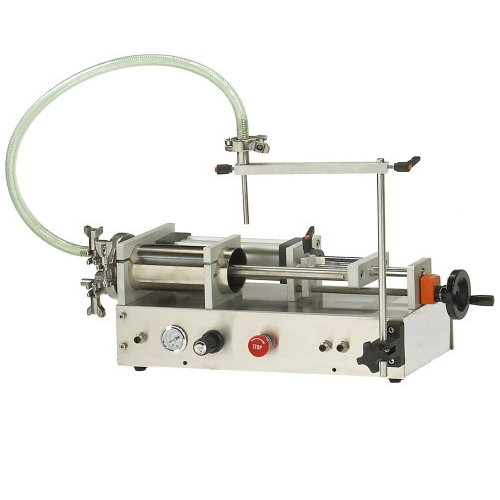

FP-100 Tabletop Piston Liquid Filling Machine

Tabletop Piston Liquid Filling Machine FP-100 is the best candidate with the consideration of budget. The volumetric piston filler draws liquids and other low viscosity products such as oils or juices directly from a tank or drum It is the simple design, low failure rate and fully operated by air.

FEATURES:

• Easy to set, even if the novice can also with ease operate
• Made of SUS 316 and 316L stainless steel ,meets cGMP requirement
• Pneumatic mechanism drive, no electronic power, easy and reliable
• Hand wheel counter mounted on volume control threaded rod
• Ball-valve shut-off nozzle
• Draws liquids directly from a tank or drum, or add a hopper for need
• With emergency button
• Foot pedal operation
• Apply liquid like , lubricating oil, lotion, hot sauce(under 60℃) or any other free flowing liquid

OPTIONS:

• Customized volume cylinder
• Heater (under 210℉/ 100℃)
• Active shut-off nozzle
• Diving nozzle with bracket
• Photocell activation

SPECIFICATIONS:

• Air Requirement：6kgf/cm2
• Filling Range：Subject to suggested piston cylinder.
• Filling Speed：50~150ml/sec
• Accuracy：0.5%~1%
• Machine Dimensions：(L)315mm (W)206mm (H)586mm
