Front Surface Mirror
Quantité : 20000pcs p Prix : $0.5-200.00
Ecoptik (also known as BRD Optical) designs and manufactures optical mirrors with high reflectance, which can double the output power of the laser; it is reflected by the first reflecting surface, the reflected image is not distorted, and there is no ghosting.

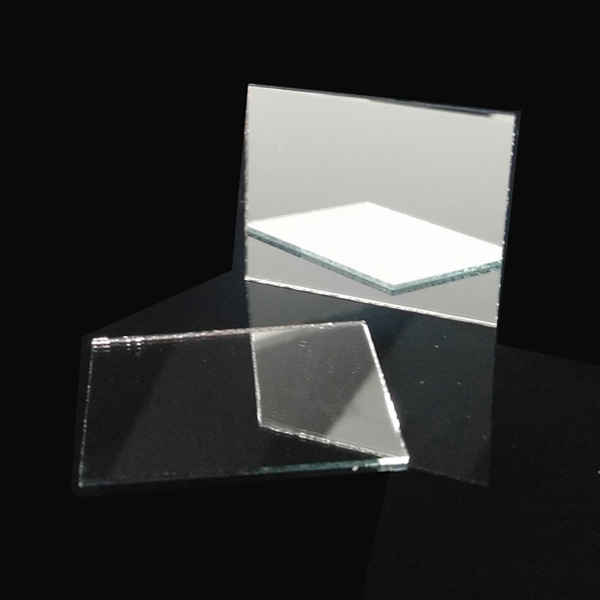

Description Of Front Surface Mirror
The Ecoptik mirror with high reflectance can double the output power of the laser; it is reflected by the first reflecting surface, the reflected image is not distorted, and there is no ghosting, which is the reflection of the front surface. If a common optical mirror is used as the second reflecting surface, not only the reflectance is low, but also the wavelength is not selective, and ghosting is likely to occur. With the front coated film mirror, the obtained image is not only high in brightness, but also accurate and unbiased, the picture quality is clearer and the color is more realistic. Front surface mirrors are widely used for optical high fidelity scanning reflection imaging.
Specifications Of Front Surface Mirror
|
Reflection Rate |
||
|
HR-94 |
R>94% @ 400~700nm |
For Scanner,Copier,PTV,OHP, etc. |
|
HR-97-# |
R>97% @ SINGLE WANELENGT |
For Scanner,PTV,LCD Projector. Etc. |
|
HR-98-# |
||
|
HR-780-A |
R>97% @ IR wave length |
For LBP(Laser Beam Printer) or other OAdigital Products |
|
HR-780-B |
||
|
Wavelength |
Minimum reflectivity |
|
400 |
92 |
|
450 |
95.5 |
|
500 |
95.5 |
|
550 |
94.5 |
|
600 |
92.5 |
|
650 |
92 |
|
700 |
90 |
Ecoptik is a professional optical component manufacturers, we provide dome flange, brd optical and etc. Want to know more? Please contact us.
