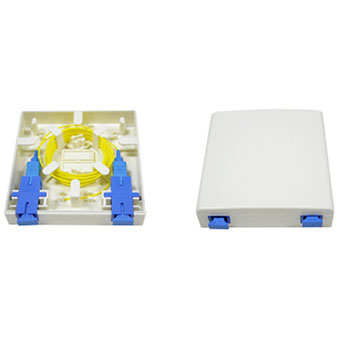

FTTH-006 Optical Fiber Panel
Support termination, splicing, and storage for fiber optic cable systems. Compact structure and perfect fiber management. Engineered fiber routing protects the bend radius through the unit to ensure signal integrity. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet. Working Temperature: -25℃~+60℃; Atmospheric.
Specifications of FTTH-006 Optical Fiber Panel
Parameter |
Value |
Remark |
Model |
FTTH-006 |
1 PC |
Outside Dimension (mm) |
86*86*25 |
16 PCS |
Material |
ABS |
8 PCS |
Color |
White |
4 EST |
Storage of Fibers |
G.657 |
1 PC |
Splice Capacity |
2Fiber |
|
Splice Method |
Fusion Splice |
45mm Sleeve |
Adapter Type and Count |
2 SC/SX or 2 LC/DX |
|
Input Cable |
3mm or Figure 8 (2*3mm) |
From Side or Bottom |
Application of FTTH-006 Optical Fiber Panel
The FTTH-006 is a desk mounted or wall mounted termination box for end user.
indoor use, capable to handle fiber fusion.
fiber cables and pigtails.
Features of FTTH-006 Optical Fiber Panel
Support termination, splicing and storage for fiber optic cable systems.
Compact structure and perfect fiber management.
Engineered fiber routing protect bend radius through the unit to ensure signal integrity.
Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
Working Temperature: -25℃~+60℃; Atmospheric .
Pressure: 70kPa~106kPa;
Relative Humidity: ≤ 85%(+30℃).
Connector Repeatability: >1000.
Connector Specification: IL: ≤0.2dB; RL: ≥50dB.
Now the price of wall mount terminal box is reasonable, if you have needs to buy fiber optic box wall, please contact us.
As one of fiber optic equipment manufacturers, we can offer sorts of fiber optic products for sale, if you are interested, please leave us a message.
