Full View Angle 4.82 Inch 180x1120 Mipi Interface Bar Type LCD Display
Prix : 3-200 USD

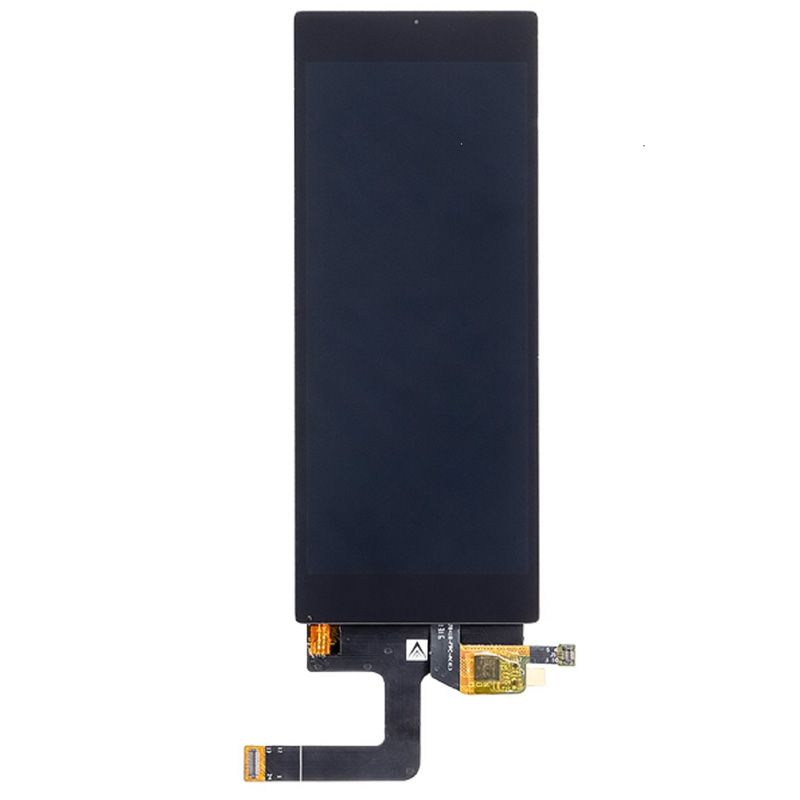

Kingtech 4.8inch 480x1120 bar type TFT LCD display is one of Kingtech main products. This one is IPSwide viewing angle.
The 4.8inch HX8389C LCD screen can be supplied for a long time. This display has the existing capacitive touch and the touch can be customized according to customer requirements. This 4.8inch module is mainly used for smart home equipment.
Kingtech Diaplay, as one of top LCD panel manufacturers, has achieved great progresses in LCD production. We promoise that we will provide the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.
Features of Full View Angle 4.82 Inch 180x1120 Mipi Interface Bar Type LCD Display
480x1120 resolution
Bar type
Support capacitive touch
Free
IPS type
Application: Smart Home
Specification of Full View Angle 4.82 Inch 180x1120 Mipi Interface Bar Type LCD Display
|
Item |
4.82'' bary type 480*1120 MIPI display |
|
Model No |
PV04800TS24A |
|
Resolution |
480x1120 |
|
Outline Dimension |
51.26 (H)*122.12(V)*1.9(T) |
|
Active Area(mm) |
47.95 (H) *112.56(V) (4.8 inch ) |
|
Interface |
MIPI DSI |
|
Viewing Angle |
Free Viewing |
|
Driving IC |
HX8389C |
|
Display Mode |
Normally Black |
|
Operating Temperature |
-10～+50 |
|
Storage Temperature |
-40～+60 |
|
Brightness |
280nist |
|
Touch panel |
capacitive touch panel |
Application of Full View Angle 4.82 Inch 180x1120 Mipi Interface Bar Type LCD Display
The 4.8inch 480x1120 bar type TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, E-bike, and navigator device.
Kingtech is one of the leading custom lcd manufacturer, we provide ultra wide stretched displays, stretched bar lcd display, stretched bar lcd, custom lcd display and etc. Want to know more? Please contact us.
