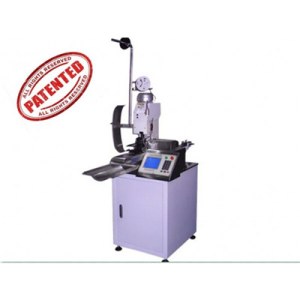

Fully Automatic Wire Cutting Stripping Crimping Machine
This Full automatic connector crimping machine will cut,strip and twist your wire firstly and then crimp connector on cable automatically. You can also close the crimping function, then it becomes to a full automatic wire stripper.
Descriptions of Full automatic connector crimping machine
Installed 100 processing programs,change processing and material quickly.
Adopting high speed DSP distributed control system, silent hybrid stepping drive, high precision, quick speed.
Using linear conduct feeding, no matter how big wire string is,no blocking,stable performance,processed wire stacked well.
Blade installation simple,easy operation,high speed,less labor.
Twisting have automatic reset function,wire diameter size no need to change,universal twisting. ( Won The National Patent).
Built-in circuit all have the abnormal signal lamp, inquires the fault becomes clear,elimination failures become easier.
Specifications of Full automatic connector crimping machine
Model No.: LL-551
Wire Size: AWG18-AWG32
Cutting Length: 35mm-99999.9mm
Strip Length: wire head: 0.1 mm - 12 mm wire tail: 0.1 mm to 8 mm (customizable strip wire head at 20 mm)
Twist Length: 2 mm - 12 mm (customizable longest twist at 20 mm)
Tolerance: ±0.002×L ( L = Total Length)
Conduct Dia.: 1.5mm-5mm
Crimping Force: 1.5T Terminal Crimping Machine (2.0T is optional)
Speed: 5000-5200pcs per hour (twist length=100mm)
Air Pressure: 5-7 KGF (need to use clean dry air)
Power Supply: AC 220V/50/60HZ single phase
Weight: 200Kg
Dimension: 700*600*1400mm (L*W*H) (exclusive of convex part)
Package: Standard Export Wooden Case
Delivery Time: 3-5 working days after receipt of your payment
Shipping: Accordingly to customer's demand
This full automatic wire cut strip twist crimp machine can match various terminals crimping demand,only need change a suitalbe die,we're pleasure to develop a crimping die with your samples.
