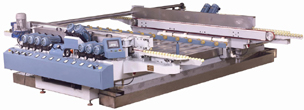

Furniture Glass Double Edge Grinding Machine
Quantité : 1set Prix : Negotiable
This machine use 20grinding wheels (it also can use 22grinding wheels for enhanced polishing) with 55mm conveyor process glass minimum 180mm*180mm width glass. The thinnest glass is 2mm (the thickest will be decided by processing request and wheels' quality). It's very suitable for all kinds of high quality furniture glass products.
Main Technical Parameters
Minimum Glass Processing Width: 180mm
Conveyor Width: 50mm
Minimum Glass Processing Thickness: 3mm
Chamfer Width: 1~3mm
Bottom Maximum Grinding Volume: 3mm
Diagonal Precision Error: ±0.5mm/m
Parallel Width Precision Error: ±0.1mm/m
Chamfer Width Precision Error: ±0.2mm/m
Width Position Precision Error: ±0.1mm
Total Power: (4+2.2*number of grinding wheels)Kw
Thickness Position Precision Error: ±0.05mm
Working Table Height: 920±20mm
Polishing Level: Furniture Level
Voltage/ Frequency: 380V/50Hz
Side Collapse Phenomena: No
Machine Width: (175+ Maximum Processing Width)cm
Glass Transmission Speed: 0.5~6.5m/min
Machine Height: 130cm
Pneumatic Working Pressure: 0.7Mpa
Machine Length: (250+10*grinding wheels)cm
Personne à contacter : Nikki Pan, 0086 757 27726288
