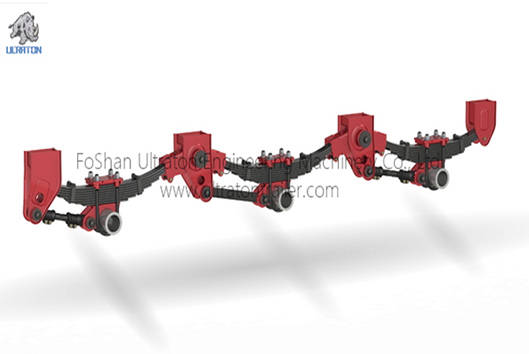

FW86 Type Heavy Duty Weight suspension Series（Lengthening Axle Spacing)
Quantité : 300 Prix : 9000--20000(subject
applicable model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 9 pieces of widening heavy-duty steel leaf springs.
Overview
Overview of FW86 Type Heavy Duty Weight suspension Series（Lengthening Axle Spacing)
Heavy duty and extra durability designed in comply with National Standard and ADR
Superior quality material SUP9 or 60Si2Mn optional on leaf spring
The grinding block is Q345/Q235 (or 20# cast steel) welded type
A grease lubrication nozzle is on equilizer wear block
Axle spacing could be customized and lengthened
Equipped with 9x90x16 leaf spring
Design for 2 or 3 axles installation with 16ton each
Applicable for square beam trailer axle for heavy duty purpose
Installation is applicable for overslung
Advantage
Advantage of FW86 Type Heavy Duty Weight suspension Series（Lengthening Axle Spacing)
Mature technology and reasonable design ensure good quality and competitive cost
FW86 Type Heavy Duty Weight Suspension Series (Lengthening Axle Spacing) uses steel leaf spring as the spring element, to achieve stronger rigidity and strength
Simple structure makes easy maintenance
Flexible design on lengthening axle spacing meet different need
Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
|
||||
|
Model |
H1(mm) |
H2(mm) |
Axle Load (KG) |
|
|
FW86L0201A |
473 |
465 |
16,000*2 |
|
|
FW86L0201B |
454 |
444 |
16,000*2 |
|
|
FW86L0202A |
513 |
505 |
16,000*2 |
|
|
FW86L0202B |
494 |
484 |
16,000*2 |
|
|
FW86L0203A |
543 |
535 |
16,000*2 |
|
|
FW86L0203B |
524 |
514 |
16,000*2 |
|
|
||||
|
Model |
H1(mm) |
H2(mm) |
H3(mm) |
Axle Load(KG) |
|
FW86L0301A |
489 |
480 |
467 |
16,000*3 |
|
FW86L0301B |
470 |
461 |
448 |
16,000*3 |
|
FW86L0302A |
529 |
520 |
507 |
16,000*3 |
|
FW86L0302B |
510 |
501 |
488 |
16,000*3 |
|
FW86L0303A |
559 |
550 |
537 |
16,000*3 |
|
FW86L0303B |
540 |
531 |
518 |
16,000*3 |
|
Note: Lengthening Axle Spacing: Axle Spacing≥1820mm |
||||
Application
Application of FW86 Type Heavy Duty Weight suspension Series（Lengthening Axle Spacing)
FW86 Type Heavy Duty Weight Suspension Series ( Lengthening Axle Spacing) is widely applicable on any Ultraton Semi Trailer in special need on axle spacing
As one of the most professional semi trailer truck manufacturers, Ultraton provide china tank trailer, lightweight semi trailer, semi trailers for sale and etc. Want to know more? Contact us.
