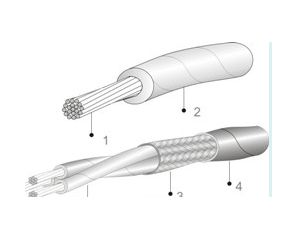

FY1-2 Polyimide tapng wire
Product Description:
Product Type: FY1-2 Polyimide
Features:
1) The operation temperature : -60℃～200℃
2) The rated voltage: 600V
3) The standard for reference: GJB76.2-85
4) Conductor: 0.35mm2-2.5mm2 Stranded silver coated copper wire
5) Insulation: Polyimide / FEP laminated tapes
6) For the aerospace, energy and chemical industry, oil exploration, electrical and mechanical equipment and other fields.
Product Classification
| 型号 Type | Name | |||||
| FY1-2 |
镀银铜芯PI/F46绝缘电线 Silver coated copper conductor PI/F46 insulated wire |
|||||
| FY1P-2 |
镀银铜芯PI/F46绝缘屏蔽电缆 Silver coated copper conductor PI/F46 insulation shielded cable |
|||||
| FY1Q1-2 |
镀银铜芯PI/F46绝缘屏蔽PI/F46护套电缆 Silver coated copper conductor PI/F46 insulation&jacket shielded cable |
|||||
| FY1Q2-2 |
镀银铜芯PI/F46绝缘屏蔽F4生带护套电缆 Silver coated copper conductor PI/F46 insulation F4 tape jacket shielded cable |
|||||
| FY1Q3-2 |
镀银铜芯PI/F46绝缘屏蔽F46护套电缆 Silver coated copper conductor PI/F46 insulation F46 jacket shielded cable |
|||||
Structure Size
| 标称截面 Nominal Cross-secion | 导体结构 Conductor Construction | 绝缘厚度 Insulation Thickness mm | 电线外径 Diameter mm | 导体电阻Conductor Resisitance | 计算重量 Weight | |
| 20℃时，≤MΩ·KM | kg/km | |||||
| 0.35 | 19/0.16 | 0.13 | 1.10±0.08 | 46.9 | 4.4 | |
| 0.5 | 19/0.18 | 0.13 | 1.30±0.08 | 30.1 | 6.6 | |
| 0.75 | 19/0.23 | 0.13 | 1.45±0.08 | 22.7 | 8.6 | |
| 1 | 19/0.26 | 0.13 | 1.60±0.12 | 17.8 | 10.8 | |
| 1.2 | 19/0.28 | 0.13 | 1.70±0.12 | 15.3 | 12.4 | |
| 1.5 | 19/0.32 | 0.13 | 1.90±0.12 | 11.7 | 15.9 | |
| 2 | 19/0.37 | 0.13 | 2.15±0.12 | 8.78 | 21 | |
| 2.5 | 37/0.30 | 0.13 | 2.40±0.15 | 6.86 | 26.5 | |
Personne à contacter : Wengang Liu, +86 10 51265801
