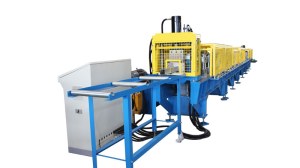

Garage Door Guide Rail Roll Forming Machine

Quantité : 6000pc/mon   Prix : 1000-6000USD

Garage Door Guide Rail Roll Forming Machine Introduction

This light steel frame machine is used to make various guide rails. A guide rail is a device or mechanism to direct products, vehicles or other objects through a channel, conveyor, roadway or rail system. Our guide rail machine can make guide rails for garage door, roll shutter door, elevator or lift shafts and so on. If you need light gauge steel framing machines, please contact us.

Features and Advantages of Garage Door Guide Rail Roll Forming Machine

Roll Shutter Door Roll Forming line, specially designed for forming rolling shutter door panel, under mass-production.

Production speed: 20/30/40/50/60 m/min optional.

Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

Cassette type platform quick change Machine base for multi-profile purposes is available for choice.

Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

Garage Door Guide Rail Roll Forming Machine Working Flow

Coil Charging Car (optional)

Decoiler (passive/auto)

Front Shear(optional)

Feeding and Guiding Table

Filming Covering (optional)

Roll Forming System

Post-Cutting to length (Hydraulic/Motor)

Output Manual Supporter/Stackmaster(optional)

Suitable Coil Sheet Material

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests

The cold roll forming machine is a machine for continuously processing a metal sheet of a coil, a strip, or the like by a multi-pass forming roller which is sequentially arranged to form a plastic processing process for a specific section profile.

Production of Roof & Wall panel roll forming equipment from Hangzhou Roll Forming Technology Co., Ltd is dignified and elegant, beautiful and novel, and the appearance of level off, even ripple, high utilization rate.

Localisation : ROOM 1010, BUILDING 1,XINYI PLAZA, NO.628, JINCHENG ROAD, XIAOSHAN, HANGZHOU, ZHEJIANG PROVINCE, P.R. CHINA, 311202 XIAOSHAN,
Personne à contacter : liu Tyler, +86 571 82686709
