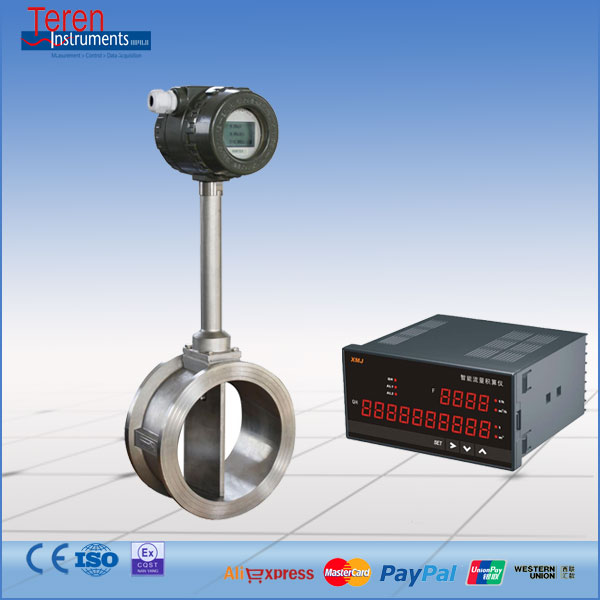

Gas smart vortex flow meter
* Introduction for vortex flowmeter
No moving parts, long term stability, simple structure and convenient installation and ma intenance.The anti disturbance circuit and anti vibration sensing head, has a certain anti vibratio n performance. Using ultra low power single chip microcomputer technology, 1 pc 3.2 V10AH lithium batteries with more than 5 years service life.
The instrument coefficient nonlinear correction by software, improve the measurement accu racy ,Small pressure loss, wide measuring range .
Using EEPROM to the cumulative flow of power down protection, protection for more than 10 years.
* Features of vortex flowmeter
|
Measuring medium |
Liquid, gas, vapor,steam
|
|
Medium temperature |
Normal temperature: -40° C~+80° C High temperature +280° C Maximum temperature +350° C
|
|
Medium pressure |
1.0MPa, 1.6MPa, 2.5MPa… 4.0MPa
|
|
Intrinsic error |
Full tube type: ± 0.5%, ± 1.0%, ± 1.5% Plug-in type: ± 2.5%
|
|
Ratio of measurement range |
1: 10 1: 20 1: 30 1: 40
|
|
Range of flow speed |
Liquid(water): 0.25M/S~9.5M/S Gas: 4M/S~78M/S Vapor: 3M/S~78M/S
|
|
Caliber DN (mm) |
Full tube type: 15, 25, (32), 40, 50, (65), 80, 100, (125), 150, 200, 250, 300 Plug-in type: 300~3000
|
|
Reynolds number |
Re> 4000
|
|
Drag coefficient |
Full tube type: Cd ≤ 2.4, Plug-in type: Drag loss can be omitted
|
|
Degree of anti-explosion |
Intrinsic safety type: ia II T2~T5, Explosion-proof type: d II BT4
|
|
Ambient temperature |
Non anti-explosive area: -40° C~+55° C Anti-explosive area: -20° C~+55° C
|
|
DC supply |
+3.6V, +12V, +24V (Field data show the supply is +3.6V for 3 to 5 years)
|
|
Output signal |
<p style="margin: 0px; padding: 0px; border: 0px; font-family: inherit; font-size:inherit; font-style: inherit; font-variant: inherit; font-weight: inherit; line-height: inherit |
