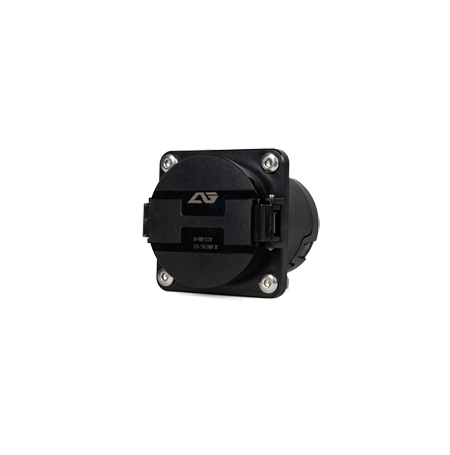

GB/T EV AC Charging Socket

Mechanical Life

Mechanical life: no-load plug>10000times

Insertion force: <100N</span>

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact - tube: copper alloy, silver plated

Environmental Performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current: 10A, 16A, 32A, 63A

The rated voltage: 250V/440V

Insulation resistance: > 1000MΩ(DC500V)

Pins temperature rise: <50K</span>

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax

Features of GB/T EV AC Charging Socket

Conform to the provisions and requirements of GB/ T 20234.2-2015.

Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.

Have one or two PTC (PT1000) thermistor (can match with hela lock), have functions of signal feedback.

Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.

Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof .

Excellent protection performance, prodection grade achieved IP55 (working condition).

Product Specification and Cable Standard
