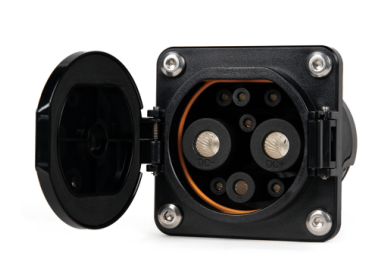

GB/T EV DC Charging Socket

Mechanical Life

lMechanical life: no-load plug>10000times

lInsertion force: <140N</span>

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact-tube: Copper alloy, silver-plated

Environmental performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current: 80A, 125A, 200A, 250A

The rated voltage: 750V/1000V

Insulation resistance: >2000MΩ(DC1000V)

Pins temperature rise: <50K</span>

Withstand voltage: 4500V (DC+/DC-/PE)

Contact impedance: 0.5mΩMax

Features of GB/T electric car charger socket

108. Conform to the provisions and requirements of GB/ T 20234.2-2015.
108. Have one or two PTC (PT1000) thermistor (can match with hela lock) ,have functions of signal feedback.
108. Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
108. Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof.
108. Excellent protection performance, prodection grade achieved IP55 (working condition).

GBT EV DC Charging Socket Parameter

We have various electric car charging socket types for customers. In our factory you can choose your favorite one. More information about ev type 2 socket cab be got from our web.
