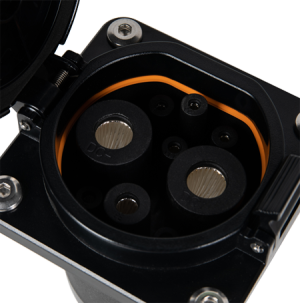

GB/T EV DC Charging Socket
Mechanical Life
lMechanical life: no-load plug>10000times
lInsertion force: <140N</span>
Applied Material
Shell material: thermoplastics, flame retardant grade UL94-0
Contact-tube: Copper alloy, silver-plated
Environmental Performance
Operating temperature: -30℃~+50℃
Electrical Performance
The rated current: 80A, 125A, 200A, 250A
The rated voltage: 750V/1000V
Insulation resistance: >2000MΩ(DC1000V)
Pins temperature rise: <50K</span>
Withstand voltage: 4500V (DC+/DC-/PE)
Contact impedance: 0.5mΩMax
Features of GB/T EV DC Charging Socket
Conform to the provisions and requirements of GB/ T 20234.2-2015.
Have one or two PTC (PT1000) thermistor (can match with hela lock) ,have functions of signal feedback.
Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof.
Excellent protection performance, prodection grade achieved IP55 (working condition).
GB/T EV DC Charging Socket Parameter
Product Type |
Rated Current |
Cable Specifications |
Note |
AG-GBDC-C80S |
80A |
H07BZ5-F2X20mm2+1x25mm2+2x4mm2+8x0.75mm2 |
Wire length and tail end treatment according to customer configuration. |
AG-GBDC-C125S |
125A |
H07BZ5-F2X35mm2+1 x25mm2+2x4mm2+8x0.75mm? |
|
AG-GBDC-C200S |
200A |
H07BZ5-F2X70mm2+1x25mm2+2x4mm2+8x0.75mm2 |
|
AG-GBDC-C250S |
250A |
H07BZ5-F2X95mm2+1x25mm2+2x4mm2+8x0.75mm2 |
As one of the most reliable top electric vehicle charging companies, we provide ev charging products, ev car charger adapter, top ev chargers, electric car charging sockets and etc. Contact us to know more electric car socket types.
