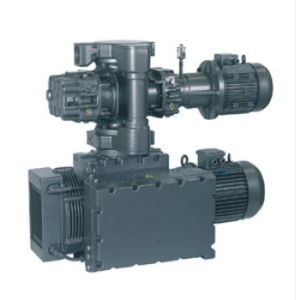

GC series roots pump system
GC series
Compact groups for high vacuum
Given the proven performance of our PVL401/PVL541 vacuum pumps and the Aerzener HV series of Roots-type pumps, we have designed pumping groups that conveniently combine the benefits of both in high performance compact packages.
The new GC packages provide the following significant benefits:
- integral pipe-work allowing easier installation
- max. ultimate vacuum 0.01 mbar abs.
- max. capacity 1,700 m³/h.
- Energy savings resulting from low motor rating
- Compact footprints
- Much reduced operating and maintenance costs.
The GC vacuum packages can be further enhanced with accessories such as electrical panels to EC standards, process control options, inlet filters.
COMPARATIVE TECHNICAL TABLE OF THE MODELS AVAILABLE
| Model |
Frequency Hz |
Nominal capacity m3/h |
Ultimate pressure (abs) mbar |
Technical data sheet | |
 |
GC 11.3-401 | 50/60 | 500/600 | 1x10-2 | |
|
|
GC 11.4-541 | 50/60 | 730/880 | 1x10-2 | |
 |
GC 12.5-401 GC 12.5BP-401 |
50/60 | 1000/1200 | 1x10-2 | |
|
|
GC 12.6-541 GC 12.6BP-541 |
50/60 | 1430/1700 | 1x10-2 |
BP=Compact groups with bypass valve.
