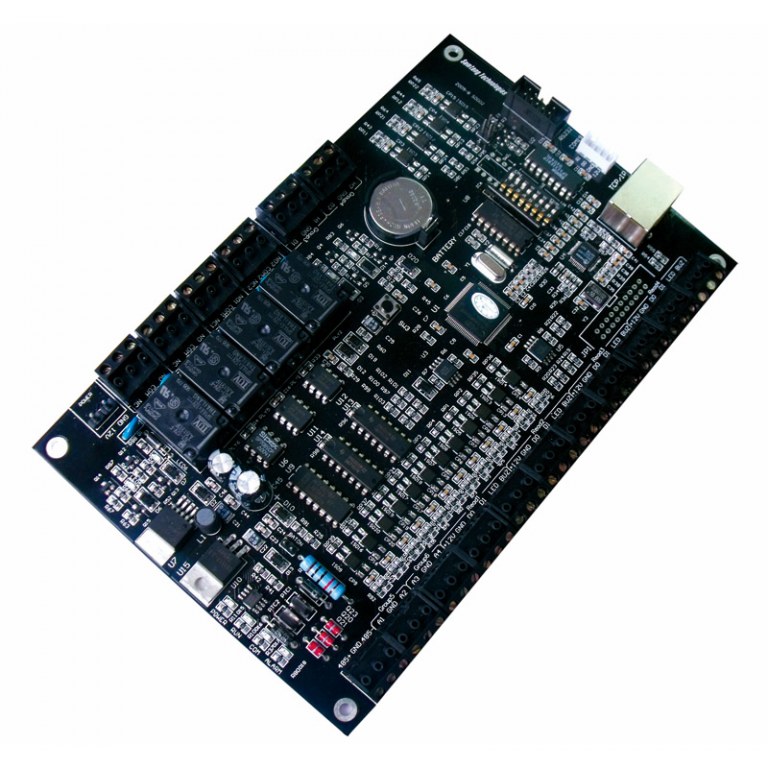

General S Series Two door access controll

Professional M series access control includes SC- T681 single door bi-directional access contr oller, SC- T682 two-door bi-directional access controller and SC- T684 four-door uni-directional acc ess controller. Adapting the latest 32bit ARM chipset technology, and dual core architecture, it pr ovides faster speed, stronger function and expansibility. It mainly applies in frequency card identi fication, user data loading, information storage, door lock control, passage control, and linkage fi re alarm interlock control. Each controller supports stand-alone running, and also supports running on-line or off-line via multi-node and trans-regional RS232/485 communication. TCP/IP network communication. System can connect up to 2000 controllers.

1. Standard Wiegand 26 card reader interface. With alarm input expansion interface.

2. Standard interface RS232,RS485,TCP/IP

3. with standard attendance function

4. E-map can check the real-time running state of each system.

5. 100,000pcs card issuing capability & 100,000pcs off-line record storage capability

6. Multiple time range setting:

7. - Holiday setting in one year

8. - 15 time groups can be set for each door

9. Multiple door state working methods:

10. - Normally Open (N.O.); Normally Closed (N.C.)

11. - First Card Open control

12. - Sleeping mode control; safe state

13. Support entry with user password

Interface Features

Single Door:

2 groups of standard Wiegand26 card reader input port

1 group of standard door magnet state input port

1 group of exit request button input port

2 groups of alarm expansion input port

2 groups of outlet terminal (support 12VDC power output)

1 group of door lock control output

1 group of expansion output
