General Wire Pipe Inspection Sewer Camera For Sale

This compact sewer camera system is widely used to inspect sewer network or to do other kinds of cctv survey to pipeline with a diameter from 200mm to 1500mm.

The robotic sewer inspection camera system features a 540TVL sony CCD camera sensor,which can provide clear image for engineers to assess the pipe conditions and rate its defects.

Video data from camera head is transferred to our sunlight viewable monitor.Operator can easily regulate crawler's motion,cable winding or unwinding via a wireless control box.

Detail Image:

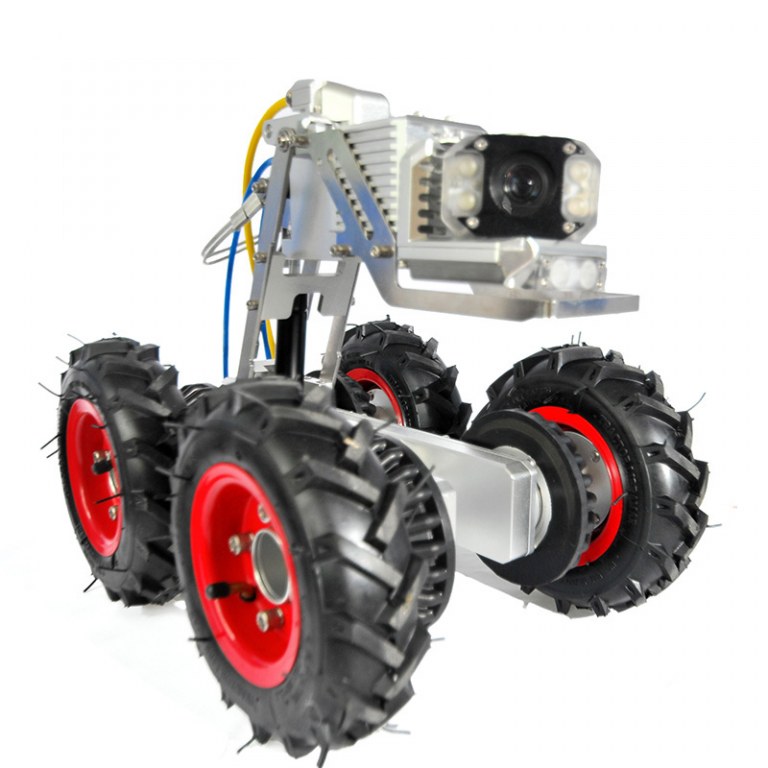

• 。 Crawler for 8" to 59" lateral sewer mainlines.

• 。 Steerable to traverse bend and navigate over obstacles.

• 。 Manual controlled camera-lift to ensure the camera head in the center position of the pipe.

• 。 Two sizes tires inside the package.

• 。 4-wheel drive can travel forward,reverse and turn around.

Camera Head Camera sensor:

• 。 1/4”540TVL Sony CCD
• 。 Sensitivity: 0.01 LUX;Capable of working in the dark
• 。 Zoom: 120 times (10X optical, 12X digital)
• 。 Illumination: 4*10w High brightness LED lights
• 。 Rotation: 360°pan, 270°tilt
• 。 Auto leveling;Auto focus 55
• 。 Working temperature: -20℃~55℃
• 。 Diameter: 90mm
• 。 Weight: 2.2KG
• 。 Waterproof level: IP68

• 。 12.1“ sunlight viewable touch control LCD
• 。 Record inspections to 64GB SSD
• 。 Water-proof standard: IP53
• 。 All featured software regulates crawler motion,cable

reel winding up and persistently measures pressure,

slope and distance,ect.

• 。 Size: L426mm*W266mm*H52mm

SD9991E+ Cable Reel

• 。 Optional manual or auto cable winding up component;
• 。 Material: Aviation aluminum+PC plastic
• 。 Meter-counter: Distance constantly displayed on screen;
• 。 erro<10cm </span>
• 。 Waterproof: IP53;
• 。 Reinforced semi-rigid cable;
• 。 Load capacity: 150KG.OD: 9mm
• 。 120m standard cable length
