Genic Liquid Oxygen Storage Tank

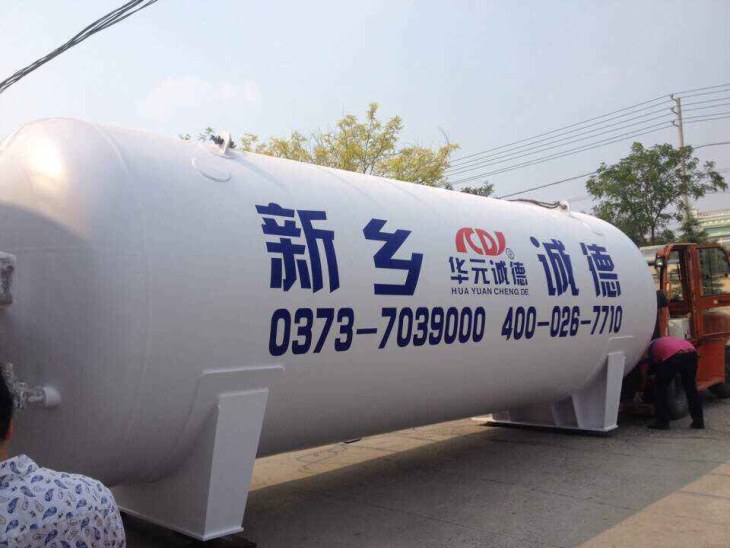

5m³ Cryogenic liquid oxygen storage tankThechnical Summary: 1. Can provide different code based on user requirement: GB/ ASME/CE certificate2. Can be horizental or Vertical based on jobsite condition3. Can special design based on stationary tank or movable tank or skid based on user funtion4. Vacuum guarantee: 3 years5. Complet equipment guarantee: one yearProduct Description we produce 3 ~ 150m3 of LNG,Website: http://www.cryo-tank.com, liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and other full range vertical and horizontal cryogenic liquid storage tanks, vacuum powder insulation or high vacuum multi-layer winding insulation methods, with thermal insulation good, compact structure, easy operation and maintenance, and can be widely used in LNG vaporization stations, filling stations and liquefaction plants and other industries. All tanks in accordance with GB150 and GB18442 design and manufacturing standards, the high vacuum helium leak, the vacuum degree, the daily evaporation rate, the leak and outgassing rate indicators were higher than the national standard requirements. Large storage tanks using advanced nine o'clock structural support and a strap top winding insulation and other measures, the structure has a higher than traditional insulation performance and reliability. In addition to the standard series, the company can produce 200 ~ 350m3 LNG large tanks according to your requirement. Main technical parameter: 1Available max. volume5m32working pressure8bar,16bar or as customer requirement3Min Design temperature-196°C4Max Design temperature+50 °C5Total Volume5.26m36Effective volume5m37Filling Ratio0.958Inner tank Material0Cr18Ni99Outside tank MaterialQ245R10Diameter1900mm11Length5165mm12Empty weight~4015kg13SuitableLIN, LOX, LAr,LNG14Insulation methodvacuum powder or high vacuum multi-layer wrap insulation15Mediumliquid argon/ nature gas/ oxygen/nitrogen/ethylenePackaging & ShippingPackaging Detail: standard export packageDelivery Detail: 60 days after advance payment
