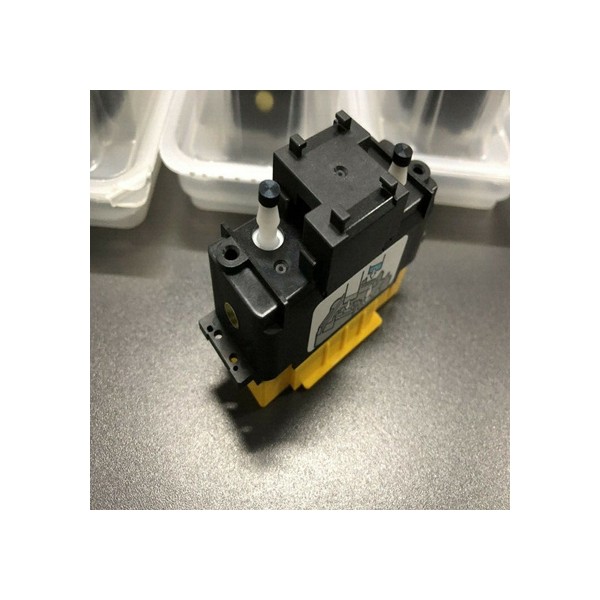

Genuine Ricoh GH2220 Printhead For UV Inkjet Printer
Quantité : 100 Prix : 135,00 €
Product Advantages
1.Ricoh GH2220 head printing speed 5 times faster than EPSON head ( Epson 2-4 m² /h; Ricoh GH2220 8-15 m² /h)
2.Ricoh GH2220 printhead is the only one industrial nozzle ink droplets can reach the accuracy of 3PL, but also the gray head.
3.Gh2220 printhead is the highest accuracy one among industrial printhead,the smallest ink drop size is 3pl.
4.Suitable for these ink: uv ink, eco solvent ink,sublimation ink ,water based ink.
5.Suitable for: eco solvent printer,uv flated printer,large format printer
6.Cost is much more economic than Gen4/5,DX5/7 printhead etc.
Features:
Expanding industrial opportunities with new precision fabricated silicon range.The GH Print Head is a result of over 10 years of Ricoh research and manufacturing optimization and is now made available for OEMs to incorporate in their aqueous and solvent ink based printer offerings.
Supports water, solvent based inks and UV curable inks.In addition to water-based inks, these print heads support UV inks & solvent inks as well.
Multi-drop technology enables gray scale expressions.These print heads support multi-drop-based droplet control for instantly consolidating the ink that is discharged from the nozzle at high speeds before it reaches the surface of the medium. Droplet volume control enables full control of ink discharge from small to large droplets.
Specifications
Method : Piston pusher with metallic diaphragm plate
Print Width: 32.4 mm(1.28")
Number of nozzles: 384
Nozzle spacing (Within a row): 1/150"(0.1693 mm)/row
Nozzle spacing (Row to row distance): 0.931 mm
Compatible ink: Aqueous, Solvent,UV curable inks
Total printhead dimensions: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92")
Weight: 36g
Ink colors supported: 2 colors
Temperature around the head: 10-32ºC
Temperature control: No heater or thermistor
Life: 30 billion actuations per nozzle
Jetting frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
Drop volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl depending on the ink
Viscosity range: 6-16 mPa•s
Surface tension: 25±1mN/m
Maximum gray scale: 4 levels * depends on ink characteristics
Alignment mechanism: Frame-abutting
Printer compatibility :
Oric TS1519-GH-6H
WER RF1808
WER R3208
WER R1808
WER R3T
WER RD3T
Winjet W2-GH2220
Yuxunda SGH0606
Yuxunda SGH0609
Yuxunda SGH1013
Yuxunda SGH2513
