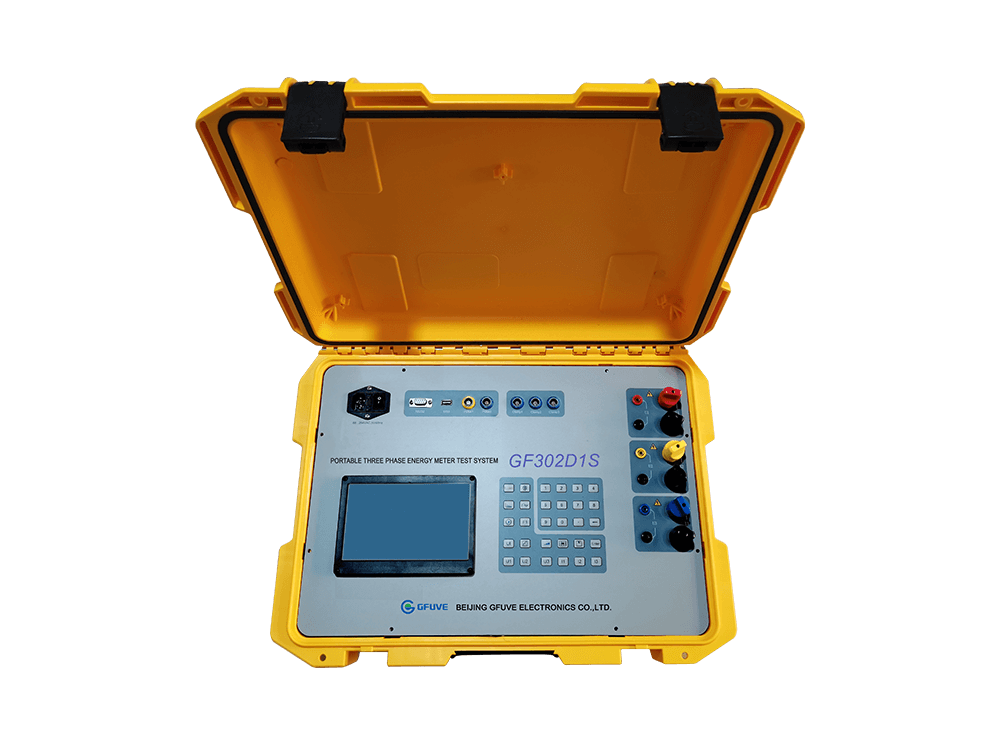

GF302D1S PORTABLE THREE PHASE ENERGY METER TEST SYSTEM WITH REFERENCE STANDARD AND...
Accuracy class: 0.05 0.02 (with 120A clamp)
5-3000A clamp on CT (optional)
integrated 0.05% three-phase current and voltage source/ a three-phase electronic reference standard meter of accuracy class 0.02%
- monitoring of meter installations; analysis of the local mains conditions/ Using on site or in the laboratory.
2.Wide measuring range 0 - 600V /0.001-120A/ Phase angle adjust from 0°to 359.999°
3.Automatic operation without need of an external PC
4.7 inch TFT touch screen
5.User friendly menu guided operation.Vector diagram display and phase sequence indication on integrated colored screen. Easy verification and analysis of meter installations
6.measuring the distortion factor and display vector diagram
7.Especially configured USB stick for storage of customer data.
With RS232 and USB2.0 port (23kg; Degree of protection: IP42)
This model portable meter test system can be programmable by PC, automatic generation of energy meter error test report.
8. Predefined multiple load points. Verification of the load conditions on metering installation;Programmable many kinds of testing energy meter schemes;
9.Harmonic analysis for voltage and current up to the 63rd harmonics
10.Recorder 10000 sets energy meter data
11.Overload, short circuit, open circuit protection;
