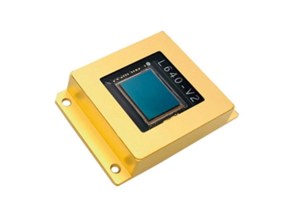

GH-SW640Pro InGaAs VGA Area Sensor
GH-SW640Pro InGaAs VGA Area Sensor
GH-SW640Pro SWIR Sensors are two-dimensional image sensors that have a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated SWIR InGaAs photodiodes for short wavelength infrared (SWIR, 900nm-1700nm) and extended wavelength infrared (Vis-SWIR, 400nm-1700nm) regions.
The detector can be supplied in two types of metallic package:
Nitrogen & Vacuum, which both include a Thermo-Electric Cooler (TEC)
It is well-adapted to a large range of applications, such as surveillance, hyperspectral imaging, remote sensing, machine vision, industrial sorting, process inspection, and science.
TECHNICAL SPECIFICATION OF GH-SW640PRO SWIR SENSORS
1. Basic Specs
|
SENSOR |
GH-SW640Pro |
|
Material |
InGaAs |
|
Array Format |
640x512 |
|
Pixel Pitch |
15µm |
|
Spectral Response |
0.9µm-1.7µm/0.4µm-1.7µm (optional) |
2. ROIC
|
SENSOR |
GH-SW640Pro |
|
Integration Type |
Snapshot |
|
Readout Modes |
ITR, IWR, CDS |
|
Integration Time |
0.2μs to full frame |
|
Frame Rate Max |
300Hz |
|
Maximum Pixel Rate |
18MHz |
|
Output Swing |
≤2V |
|
Temperature Sensor |
Yes |
3. Key Specs
|
SENSOR |
GH-SW640Pro |
|
Quantum Efficiency |
>70%（1.0µm-1.6µm） |
|
Readout Noise |
18e-@HG |
|
Dark Current |
30fA@0.1V&18℃ |
|
Pixel Operability |
> 99.5%（Minimum） |
|
Non Uniformity |
< 5% |
4. Package
|
SENSOR |
GH-SW640Pro |
|
Dimensions |
36 × 25.4 × 7.2mm |
|
Window Material |
Quartz/sapphire |
|
No.of Pin |
28-pin Metal DIP Package |
|
Packaging Type |
Hermetically sealed |
|
Operating Temperature |
- 40℃ ~ 70℃ |
|
Storage Temperature |
- 40℃ ~ 70℃ |
At GHOPTO domestic and international clients receive full access to unrestricted performance and full supply-chain control: from the unprocessed starting material to fully packaged production devices such as IR imagers/cameras, lasers, waveguides, and systems. With our world-class design and fabrication facility, GHOPTO is ready to take your next project from design to prototype to volume production.
