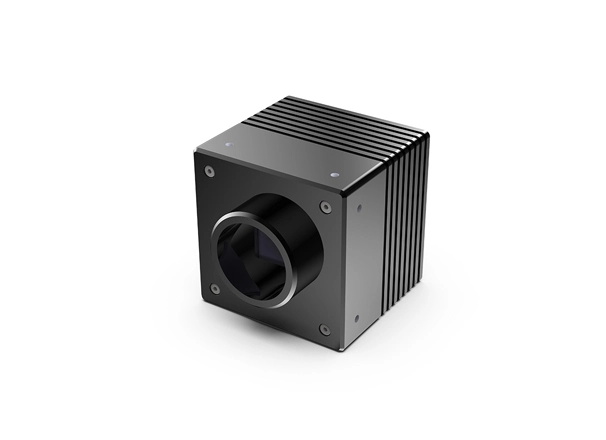

GH-SW640Pro-U3 SWIR Camera

GH-SW640Pro-U3 SWIR Camera

The SWIR Camera series feature a 640 x 512 pixel InGaAs focal plane array (FPA) with a pitch of 15μm. The camera operates in the 900nm – 1700nm wavelength range, which covers the SWIR region of the spectrum. The product has the characteristics of small size, high reliability and excellent environmental adaptability. The product adopts USB3.0 interface, and users can integrate it into the application system quickly and easily.

The camera is a high-performance usb3.0 SWIR camera that offers high sensitivity, low noise, and high resolution for imaging in low-light-level conditions. With its advanced features and capabilities, this usb 3.0 camera is an ideal choice for various applications such as surveillance, astronomy, machine vision, industrial process monitoring, and medical imaging.

High Frame Rate

TE Cooler

Low Readout Noise & Power Consumption

Windowing

TECHNICAL SPECIFICATION OF GH-SW640PRO-U3 SWIR CAMERA

Key Specs

Model type GH-SW640Pro-U3

Dark Current HG: 26.5e MG: 42.8e LG: 400e

Full Well Capacity HG: 8.5Ke MG: 63.9Ke LG: 1.5Me

Data Interface USB3.0

Sensor GH-SW640Pro

Shutter Mode Global Shutter

Active Area 9.6mm x 7.2mm

Resolution 640 x 512

Pixel Size 15μm

Frame Rate 430Hz

Integration Time 40μs ~ 1s

Pixel format Mono

Spectral Response 900nm ～ 1700nm

Dynamic Range 69.8dB

SNR 62.42dB

Pixel Bit Depth 8/14 bit

Power Input 12V DC, 4.8W（TEC Off）

Cooling Method TEC

Dimension(L x W x H) 55mm x 55mm x 60mm

Lens Mount C-Mount

Operating Temp. -40 ℃ ～ +60 ℃

Weight ＜250g

Certificate CE, FCC, RoHS
