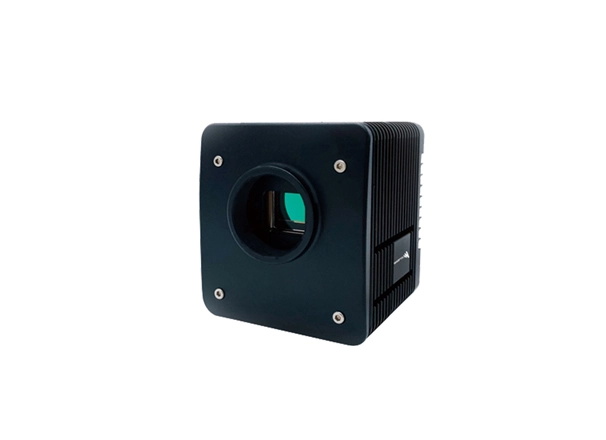

GH-VSW640Pro-U2 & GH-VSW640Pro-Gnet SWIR Camera
GH-VSW640Pro-U2 & GH-VSW640Pro-Gnet SWIR Camera
The short wave infrared camera series is based on an in-house developed InGaAs detector with a pitch of 15μm. The camera operates in the 400nm – 1700nm wavelength range, which covers the SWIR region of the spectrum. The product has the characteristics of small size, high reliability and excellent environmental adaptability.
The product adopts USB2.0 or Gigabit network interface, and users can integrate it into the application system quickly and easily.
The camera is a high-performance small ir camera that offers high sensitivity, low noise, and high resolution for imaging in low-light-level conditions. With its advanced features and capabilities, this camera is an ideal choice for various applications such as surveillance, astronomy, machine vision, and medical imaging.
Self-developed SWIR Ingaas Camera
Wide Spectral Response
Automatic on-board image processing
Single point Correction
TE Cooler
TECHNICAL SPECIFICATION OF GH-VSW640PRO-U2 & GH-VSW640PRO-GNET SWIR CAMERA
1. Basic Specs
|
Type |
GH-VSW640Pro-U2 |
GH-VSW640Pro-Gnet |
|
Frame Rate |
50 Hz |
100Hz |
|
Integration Time |
0.2μs ~ 20ms |
0.2μs ~ 20ms/Max 9ms at 100Hz |
|
Digital Output |
USB2.0 |
Gnet |
|
Trigger |
Trigger TTL（Optional） |
RS-422/TTL （Optional） |
|
Power consumption |
＜3W（TEC Off） |
＜4W |
2. Key Specs
|
Sensor |
GH-VSW640Pro |
|
Resolution |
640 x 512 |
|
Spectral range |
0.4μm ~ 1.7μm |
|
Pixel pitch |
15μm |
|
Active area |
9.6mm x 7.68mm |
|
Quantum Efficiency |
＞70%（1.0μm ~ 1.6μm） |
|
Integration Type |
snapshot |
|
Pixel Operability |
＞99.5% |
|
Full Well Capacity |
1.8Me- |
|
ADC |
14bit |
|
Analog video output |
PAL, SMA Interface |
|
Software |
Windows Software/Windows SDK |
|
Power Input |
DC 12V ± 2V |
|
Dimensions |
65mm × 58mm × 75mm（No lens） |
|
Lens mount |
C-Mount |
|
Operating Temp |
-20 ℃ ~ +50 ℃/-40 ℃ ~ +70 ℃（Optional） |
|
Storage Temp |
-40 ℃ ~ +80 ℃ |
|
On-board Image Processing |
Single/two-point correction, bad pixel replacement, image denoising, |
|
image smoothing, controllable shutter compensation |
Personne à contacter : ghopto Josh, 86 0351 7195681
