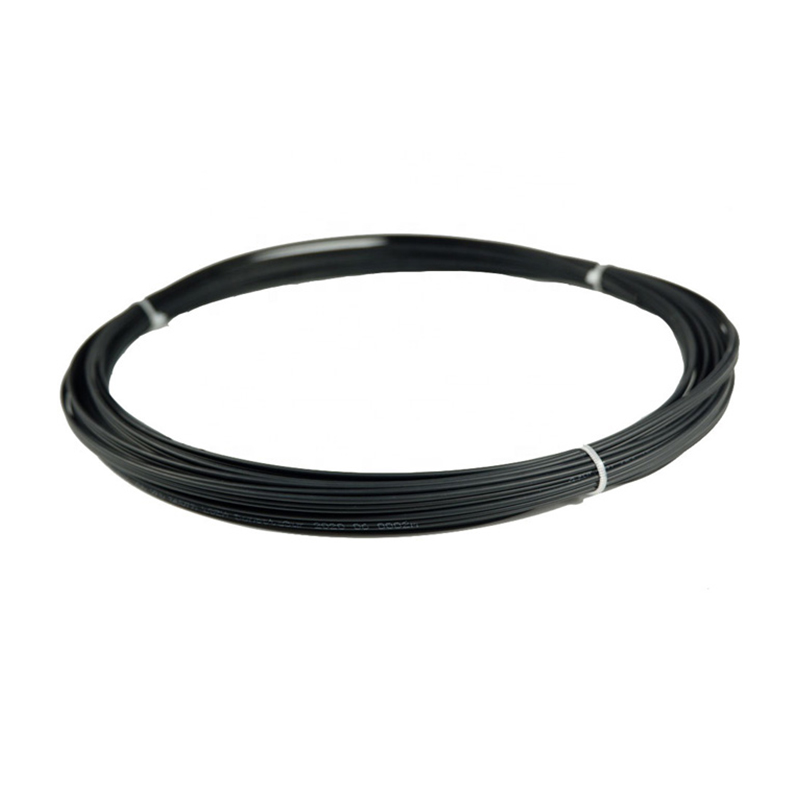

GJXFH-2B Fiber Optic Drop Cable-Square

FTTH round drop cable is light in weight and small in size, and it is suitable for receiving user terminals from FTTH network. There are ribbon fiber or single fiber optional. The non-metallic structures can also be provided.

As a professional fiber optic products supplier, TUOLIMA can customize the optical cable according to your requirements.

Details of GJXFH-2B drop cable fiber optic

The fiber optic drop wire unit is positioned in the center. Two parallel steel wires are placed at two sides. Then the cable is completed with black or color LSZH sheath.

Item Parameters

No. of fibers count 2

Strength member Diameter 0.5 mm

Material FRP

Outer jacket Diameter 3.0(±0.1)*2.0(±0.1) mm

Material LSZH

Color Black

Tensile performance Short term 200 N

Long term 100 N

Crush Short term 2200 N/100mm

Long term 1100 N/100mm

Cable attenuation ≦ 0.4dB/km at 1310nm, ≦ 0.3 dB/km at 1550nm

Cable weight (Approx.) 10.0 kg/km

Characteristics of GJXFH-2B Fiber Optic Drop Cable

Optical fiber characteristics (G.657A FIBER)

Item Unit Specification

G. 657A

Mode field diameter 1310nm mm 8.6 ± 0.4

Cladding diameter mm 125.0 ± 0.7

Cladding non-circularity % £1.0

Core concentricity error mm £0.5

Coating diameter mm 245 ± 5

Coating/cladding concentricity error mm £12

Cable cut-off wavelength nm £ 1260

Attenuation Coefficient 1310nm dB/km £0.35

1550nm dB/km £0.21

Macro-bend loss (1 turn,7.5mm radius) 1550nm dB/km £0.5

1625nm dB/km £1.0

Proof stress level kpsi ≥100

Packing and Comments of GJXFH-2B Fiber Optic Drop Cable

Packing material: Non-returnable wooden drum and standard carton.

Both ends of fiber optic cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.

Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

Cable type and number of optical fiber

Manufacturer name

Month and Year of Manufacture

Cable length

Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:

Manufacture name and logo

Cable length

Cable type and number of fibers

Roll way

Gross and net weight

Video of GJXFH-2B Fiber Optic Drop Cable-Square

Fiber optic drop cable is also called butterfly cable. The common package is wooden reel and the carton box. According to the usage scenario, with or without messenger, it is divided into indoor cable and outdoor cable. According to the different strength member, the cable can be divided into FRP and steel. Meanwhile, we can also provide the printing service, printing company name, model, date, etc. We can provide samples. Please feel free to contact us.
