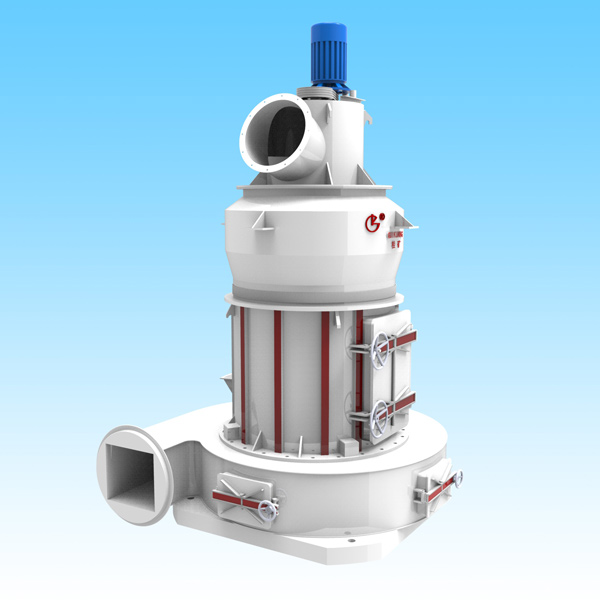

GK2150 Raymond Mill
GK2150 Raymond Mill Technical & Structural Benefits:
This High Pressure Suspension Mill has high output, high-efficiency, and energy saving. It has small floor area and saves workshop.
The innovative design of the "maintenance-free device" for roller assembly, Refill grease every 30 days.
Large conveying capacity: Blower adopts high-pressure centrifugal fan to increase air volume and air pressure, so as to greatly improve the ability of pneumatic conveying.
Optimize inside design of the main unit, keep the roller and grinding ring abutting contact during running, improve grinding efficiency and operational reliability, and reduce the high failure rate of vertical pendulum grinding mill.
Equipped with water cooling structure for reducer of the main unit. Reducer adopts German technology.
High classifying accuracy: Classifier adopts built-in large taper blade turbine classifier.
No need to disassemble the spare parts such as cinquefoil shelf. More convenient for maintenance.
Energy-conservation & Environment-protection: Equipped with pulse dust collector in surplus wind outlet, collection-efficiency is as high as 99.9% to keep workshop environmental health.
Automatic control for air blower valve, reduce operating labor intensity.
Integral installation of air blower, water cooling system ensures running efficiency.
Running more smoothly, low noise, energy saving.
Intelligent control. The one button start and stop system and fault alarm system reduce operating personnel.
|
|
Max Feeding Size |
Product Fineness (mash) |
Capacity |
Gross Weight |
Total Installed Power |
|
GK2500 |
≤35mm |
80-325mesh |
15000-50000kg/h |
66t |
625kw |
|
GK2150 |
≤35mm |
80-325mesh |
10000-40000kg/h |
64t |
548kw |
|
GK1720A |
≤35mm |
80-325mesh |
6000-25000kg/h |
49t |
424.5kw |
|
GK1620A |
≤30mm |
80-325mesh |
3000-18000kg/h |
34.5t |
329.5kw |
|
GK1500 |
≤20mm |
80-325mesh |
2500-16000kg/h |
31t |
242kw |
|
5R4128 |
≤20mm |
80-325mesh |
2000-14000kg/h |
28.5t |
220kw |
|
5R4125 |
≤20mm |
80-325mesh |
2000-14000kg/h |
28.5 |
202kw |
|
GK1280 |
≤20mm |
80-325mesh |
1500-10000kg/h |
19t |
133.5kw |
|
4R3220 |
≤20mm |
80-325mesh |
1000-7000kg/h |
14.6t |
101.5kw |
