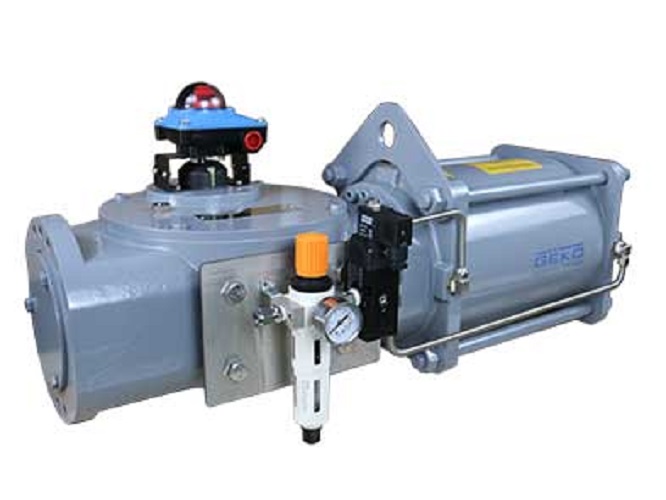

GKSF-Series Scotch Yoke Pneumatic Actuator

GKSF pneumatic actuators is specially designed for large torque output. It is a highly unique and reliable means of operating ball, butterfly or plug valves with 90 degree rotating mechanisms.Totally enclosed weatherproof center‐body fabricated in carbon steel or ductile iron provides an excellent strength to weight ratio. For GKSF electric pneumatic actuator torque output can up to 2.000.000 Nm for double acting, even the spring return end (single acting ) the biggest torque outputs is 1.000.000Nm. The output form is hole, and connection size is in conformance with ISO5211 standards, and it also equipped with a hydraulic manual device.

Specification of GKSF-Series Scotch Yoke Pneumatic Actuator

Torque Outputs

Double Acting: 830-250000Nm

Spring Return End Torques: 3307-71764Nm

Operating Temperatures Standard: -20℃-80℃

Low Temperature: -40℃-80℃

High Temperature: -20℃-120℃

Operating Pressure

Pneumatic: 3-7 BAR

Hydraulic: 100 BAR

Features of GKSF-Series Scotch Yoke Pneumatic Actuator

GKSFB/C series spring return high torque pneumatic drive device

Model: GKSFB/C-SR-SM/GM/HM

Features: 1. Spring return 90 degree rotation

2. Scotch yoke structure

3. The output form is hole output

4. The connection size adopts ISO5211 standard

5. The installation size of the limit switch meets the NAMUR standard

6. It can be used for on-off and regulating pneumatic valves

7. With hydraulic manual device

8. Bi-direction stroke ±5° adjustable

Torque range: 7380Nm～10000Nm

*GKSFB/C series double-action high-torque pneumatic drive device

Model: GKSFB/C-DA-SM/GM/HM

Features: 1. Double-acting 90-degree reversal

2. Scotch yoke structure

3. The output form is hole output

4. The connection size adopts ISO5211 standard

5. The installation size of the limit switch meets the NAMUR standard

6. It can be used for on-off and regulating pneumatic valves

7. With hydraulic manual device

8. Two-way stroke ±5° adjustable

Torque range: 18670Nm～65740Nm

As one of the most professional valve manufacturers, we provide forged steel cryogenic globe valve, electric air valve actuator, electric pneumatic cylinder, fast pneumatic cylinder, valve products and etc. For more information, please feel free to contact us!
