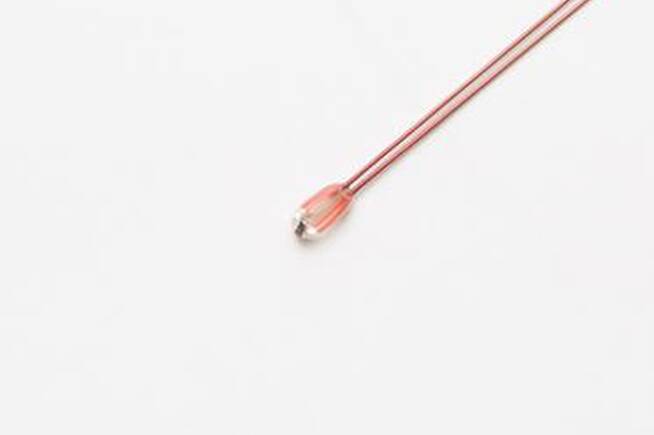

Glass Bead Thermistor, Single-ended Glass-sealed Thermistor

Glass Bead Thermistor, Single-ended Glass-sealed Thermistor

Specification/model format: MTG2-1/2/3/4

Details

Material: semiconductor ceramic resistor chip / high-efficiency conductive Dumet wire/glass

Applicable temperature range-50~300℃

Output signal: analog signal output

Advantages

1.MTG2-1/2/3/4 series products are radial lead single-ended glass package type

2. Good stability and high reliability

3. Wide resistance range: 2KΩ to 500KΩ

4. High resistance and B value accuracy

5. Glass package, can be used under harsh conditions such as high temperature and high humidity

6. Small size, sturdy structure, easy for automatic installation

7. Operating temperature range -50℃ to +300℃

8. Fast heat induction and high sensitivity

Application

1. Temperature control and temperature detection of household appliances such as induction cooker, electric pressure cooker, rice cooker, electric oven, disinfection cabinet, water dispenser, and our glass encapsulated thermistor are also suitable for microwave oven, electric heater, etc.

2. Temperature detection and temperature compensation of medical equipment (such as copiers, printers, etc.)

3. Temperature control and testing of industrial, medical, environmental protection, meteorological, and food processing equipment

4. Temperature protection of rechargeable battery pack and charger

5. Temperature compensation of instrument coils, integrated circuits, quartz crystal oscillators and thermocouples

General parameters

ResistanceR25℃

5K

10K

15K

20K

50K

100K

200K

B value(R25/R50)

3380

3950

3470

4200

3977

4100

4200

Tolerance

1%

2%

3%

5%

Note: What is the B value:

A material constant that describes the resistance-temperature relationship. The value of B can reflect the scale of resistance to temperature change between two specific temperatures. As the temperature changes, the resistance value of a product with a large B value under the same conditions changes more, that is to say, it is more sensitive.

TOPOS is one of professional industrial sensor suppliers. We provide Home Appliance Temperature Sensor, Pellet Grill Temperature Sensor, ntc glass encapsulated thermistor 86k ohm, bead type thermistor, thermistor resistor and so on. Want to know more? Please contact us.
