Glass cutting machine
Quantité : 1 set Prix : 4500-6000USD

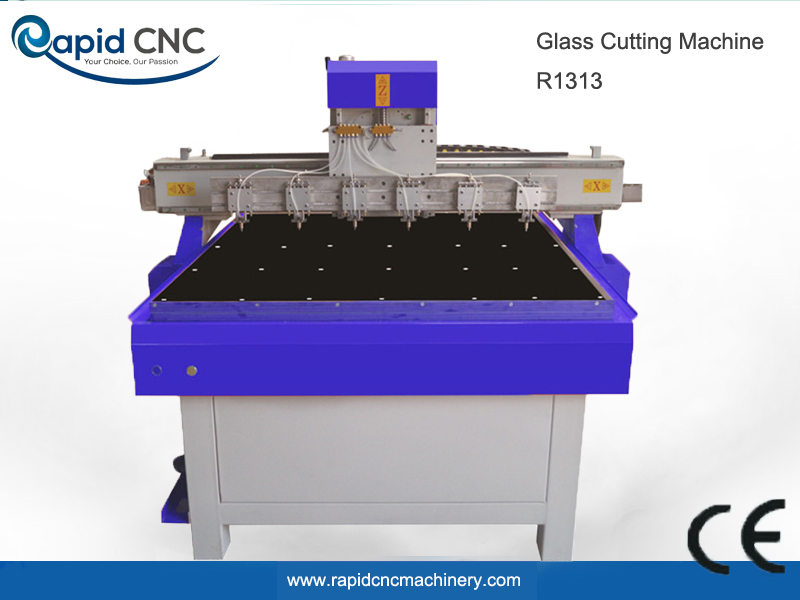

CNC Glass cutting machine for glass cutting R1313
Features:
1. Lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief to reduce residual stress; ensure excellent stability, not easy to be deformed.
2. Z axis adopts Germany-made ball screw, high precision.
3. All the three axis's are used imported products with high precision ballscrews
4. All axis high speed stepper motors,servo motors to be optional;floating table easy for loading .
5. Adopt own developped cutter holder,Germany cutting roller.make sure fast speed cutting preformance .
6. Pro glass cutting software ,Compatible with Autocad file,Automatic air pressure adjustment ,high working precision
Applications:
1. Machine is mainly used for all type of glass cutting with small size ..Such as construction glass ,make-up mirror glass ,furniture glass,clock glass,crafts glass ,etc .

Technical parameters:
|
No |
Description |
Parameter |
|
1 |
Travel (X/Y/Z) |
1300X1300X200mm |
|
2 |
Work piece height |
less or equal 200mm |
|
3 |
Table type |
Hard PVC table /wooden table |
|
4 |
Machine Structure |
Whole steel welded |
|
5 |
Table Surface |
Hard PVC/wood |
|
6 |
Motor |
Stepper/servo as optional |
|
7 |
Transmission |
3 axis ballscrews |
|
8 |
Cutting head |
360 degree roation |
|
9 |
speed |
300-10000 RPM/min |
|
10 |
Precision |
0.025mm |
|
11 |
Repeat positioning precision |
<0.025mm</p> |
|
12 |
Air presure |
0.6Mpa |
|
13 |
Cutting speed |
0-130m/min |
|
14 |
Motor driver |
stepper |
|
15 |
Cutting thickness |
0-12mm |
|
16 |
Engraving code |
G-code /U00/mmg/plt |
|
17 |
Software environment |
window98/2000/XP |
|
18 |
voltage |
AC220/380V/50HZ |
|
19 |
Machine weight |
950kgs |
|
20 |
Machine dimension |
1850*1850*1650mm |
Main accessories included:
1) Air pump for floating table
2) Allen keys for spindle adjusting (and machine cover fixing etc)
3) cutting tools
4) 1*USB Cable
5) 1*CD or electronic documents
6) 1*Power cables
7) 1*Tool box (for routine maintenance)
Machine delivery time:
14 working days.
Payment terms:
1. 30% deposit T/T in advance, 70% before delivery from factory.
2. L/C at sight.
3. West union.
4. Paypal etc.
Guarantee & After Sales Service
1). Whole machine is guaranteed for 12 months..
2). Technical support available 24 hours no matter through phone ,email or whatsapp
Samples:

Personne à contacter : Jackie Shen, 008653188984832
