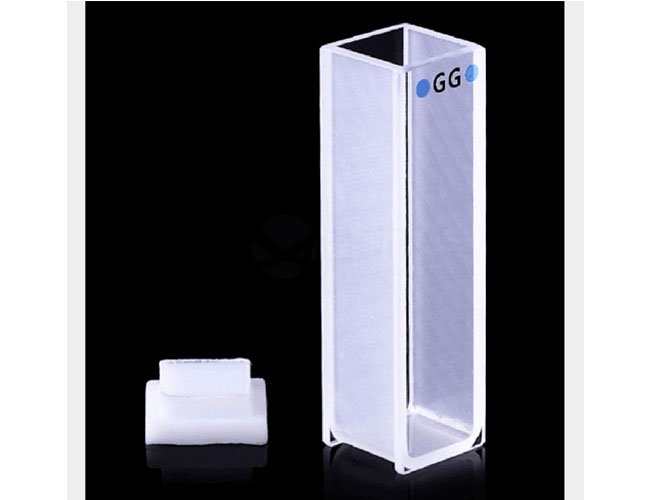

Glass Cuvette

Glass Cuvette 1mm-350ul

Optical Glass Cuvette High Transmittance Science Experiment High Temperature Resistant Acid And Alkal 1mm 350ul-G

Description:

Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%. The material is completely transparent and has excellent surface properties. It is made of German SCHOTT glass without bubbles or stripes.

Suitable for visible spectroscopic analysis instruments, with good chemical compatibility.

Capacity: 350ul

Light path: 1mm

Process: Glass Powder Sintering Process

Material: Germany imported optical glass

Heat resistance: 300 degrees Celsius

Applicable wavelength: 350nm-2000nm

Dimensions: 12.5*3.5*45mm

Material introduction:

1. Germany imported glass has high light transmittance, low impurity and good scratch resistance
2. Stable chemical properties hardly react with other substances
3. Applied to optical electronics Microwave technology Diffractive optical elements and many other fields

The main parameters:

Density: 2.55g/Cubic centimeter

Specific heat: 8795/kg.Celsius

Dispersion: 0.00806

Refraction number: 1.5230

Abbe number: 58.3

Thermal expansion coefficient: 9.4*10E/-6 K

Glass Cuvette 2mm-700ul

Optical Glass Cuvette High Transmittance Science Experiment High Temperature Resistant Acid And Alkal 2mm 700ul-G

Description:

Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%. The material is completely transparent and has excellent surface properties. It is made of German SCHOTT glass without bubbles or stripes.

Suitable for visible spectroscopic analysis instruments, with good chemical compatibility.

Capacity: 700ul

Light path: 2mm

Process: Glass Powder Sintering Process

Material: Germany imported optical glass

Heat resistance: 300 degrees Celsius

Applicable wavelength: 350nm-2000nm

Dimensions: 12.5*3.5*45mm

Material introduction:

1. Germany imported glass has high light transmittance, low impurity and good scratch resistance
2. Stable chemical properties hardly react with other substances
3. Applied to optical electronics Microwave technology Diffractive optical elements and many other fields

The main parameters:

Density: 2.55g/Cubic centimeter

Specific heat: 8795/kg.Celsius

Dispersion: 0.00806

Refraction number: 1.5230

Abbe number: 58.3

Thermal expansion coefficient: 9.4*10E/-6 K

Glass Cuvette 3mm-3.5ml

Cuvette Quartz Fluorescent Microcell Transparent UV light10mm 350ul Slit 1mm Parameter:

Capacity: 350ul

Light path: 10mm

Process: Glue bonding process

Material: Japanese imported quartz optical glass

Light transmittance: more than 80% (data pairing)

Applicable wavelength: 200nm-2500nm

Dimensions: 12.5*12.5*45mm

Feature:

1. Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%.
2. The material is completely transparent and has excellent surface properties.
3. Made using Japanese imported KGS-1 optical quartz glasswithout bubbles or stripes.
4. Manufactured using a glue bonding process, the cost performance is relatively high.
5. Applicable to UV-visible fluorescence spectrum analysis equipment, imported abroad spectrometer equipment, has good chemical compatibility, corrosion resistance, acid and alkali resistant, long service life, little impact on the measured liquid.
6. After each cuvette passes the inspection, it must be filled with a dust bag to prevent dust from entering during transport.

Glass Cuvette 10mm-3.5ml

Optical Glass CuvetteTransmittance Science Experiment Transparent High Temperature Resistant Acid And Alkal BSM-10mm-3.5mlG 2PCST Ailored For True Science Experimenters

Description:

Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%. The material is completely transparent and has excellent surface properties. It is made of German SCHOTT glass without bubbles or stripes.

Suitable for visible spectroscopic analysis instruments, with good chemical compatibility.

Capacity: 3.5ML

Light path: 10mm

Process: glue/powder sintering process

Material: Germany imported glass

Translucent surface: 2

Applicable wavelength: 350nm-2000nm

Dimensions: 12.5*12.5*45mm

Material introduction:

1. Germany imported glass has high light transmittance, low impurity and good scratch resistance
2. Stable chemical properties hardly react with other substances
3. Applied to optical electronics Microwave technology Diffractive optical elements and many other fields

The main parameters:

Density: 2.55g/Cubic centimeter

Specific heat: 8795/kg.Celsius

Dispersion: 0.00806

Refraction number: 1.5230

Abbe number: 58.3

Thermal expansion coefficient: 9.4*10E/-6 K

Glass Cuvette 30mm-10.5ml

Optical Glass Cuvette High Transmittance Science Experiment High Temperature Resistant Acid And Alkal 30mm 10.5ml-G

Description:

Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%. The material is completely transparent and has excellent surface properties. It is made of German SCHOTT glass without bubbles or stripes.

Suitable for visible spectroscopic analysis instruments, with good chemical compatibility.

Capacity: 10.5ml

Light path: 30mm

Process: glue/powder sintering process

Material: Germany imported glass

Translucent surface: 2

Applicable wavelength: 350nm-2000nm

Dimensions: 12.5*32.5*45mm

Material introduction:

1. Germany imported glass has high light transmittance, low impurity and good scratch resistance
2. Stable chemical properties hardly react with other substances
3. Applied to optical electronics Microwave technology Diffractive optical elements and many other fields

The main parameters:

Density: 2.55g/Cubic centimeter

Specific heat: 8795/kg.Celsius

Dispersion: 0.00806

Refraction number: 1.5230

Abbe number: 58.3

Thermal expansion coefficient: 9.4*10E/-6 K

BSM10mm-3.5ml GP

Optical Glass CuvetteHigh Transmittance Science Experiment Common Type Not Resistant To High Temperature Acid And Aalkal Common Type 30mm 10.5ml-G

Description:

Precision optical processing technology, the optical error of the transparent surface is less than or equal to 0.3%. The material is completely transparent and has excellent surface properties. It is made of German SCHOTT glass without bubbles or stripes.

Suitable for visible spectroscopic analysis instruments, with good chemical compatibility.

Capacity: 10.5ml

Light path: 30mm

Process: glue/powder sintering process

Material: Germany imported glass

Translucent surface: 2

Applicable wavelength: 350nm-2000nm

Dimensions: 12.5*32.5*45mm

Material introduction:

1. Germany imported glass has high light transmittance, low impurity and good scratch resistance
2. Stable chemical properties hardly react with other substances
3. Applied to optical electronics Microwave technology Diffractive optical elements and many other fields

The main parameters:

Density: 2.55g/Cubic centimeter

Specific heat: 8795/kg.Celsius

Dispersion: 0.00806

Refraction number: 1.5230

Abbe number: 58.3

Thermal expansion coefficient: 9.4*10E/-6 K
