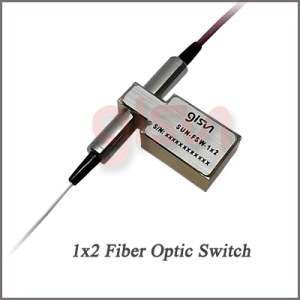

GLSUN 1×2 Mechanical Optical Switch Fiber Switch
Quantité : 10000 Prix : USD100.00/PCS
GLSUN 1×2 Mechanical Optical Switch Fiber Switch Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
GLSUN 1×2 Mechanical Optical Switch Fiber Switch Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
·Network Security and Monitoring
GLSUN 1×2 Mechanical Optical Switch Fiber Switch Specifications
Parameters | Unit | SUN-FSW-1×2 | |
Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
Insertion Loss 1, 2 | dB | Typ: 0.8 Max: 1.2 | Typ: 0.6 Max: 0.8 |
Return Loss 1, 2 | dB | MM ≥ 30 SM ≥ 50 | |
Crosstalk 1 | dB | MM ≥ 35 SM ≥ 55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Operating Voltage | V | 3.0 or 5.0 | |
Durability | Cycles | ≥ 10 Million | |
Switching Time | ms | ≤8 | |
Optical Power | mW | ≤500 | |
Operating Temperature |
℃ | -20 ~ +70 | |
Storage Temperature |
℃ | -40 ~ +85 | |
Relative Humidity | % | 5 ~ 95 | |
Weight | g | 14 | |
Dimension | mm | (L)27.0×(W)12.6×(H)8.2 ±0.2 | |
Note: 1 Within operating temperature and SOP. 2 Excluding connectors. |
