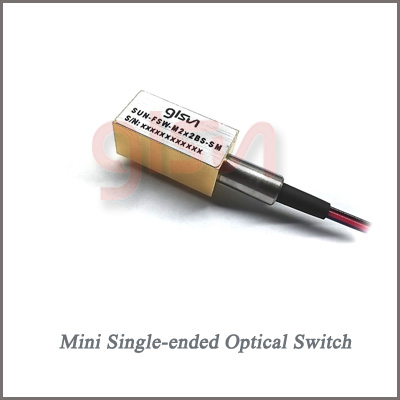

GLSUN Mini Single-ended Fiber Optical Switch M11S or M12S or M22BS
Quantité : 10000 Prix : USD100.00/PCS
GLSUN Mini Single-end Fiber Optical Switch
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
Specification
|
GLSUN Mini Single-end Fiber Optical Switch - Specification |
|||
|
Parameters |
Unit |
M1×1S or M1×2S or M2×2BS |
|
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
|
Test Wavelength |
nm |
1310 / 1550 |
|
|
Insertion Loss 1, 2 |
dB |
M1×1S |
Typ: 0.4 Max: 0.6 |
|
M1×2S or M2×2BS |
Typ: 0.6 Max: 0.8 |
||
|
Return Loss 1, 2 |
dB |
SM ≥ 50 |
|
|
Crosstalk 1 |
dB |
SM ≥ 55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Operating Voltage |
V |
3V or 5V |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Voltage Pulse Width |
ms |
≥ 20 |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-20~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Weight |
g |
13 |
|
|
Dimension |
mm |
(L )20×(W)9.5×(H)8.5 ±0.2 |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
