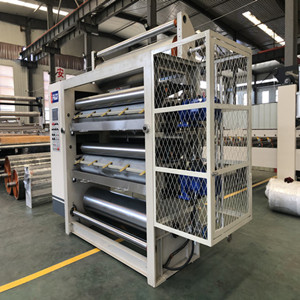

Glue Machine Duplex Gluer
Quantité : 1000 set Prix : USD 700
Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583
Product Description
Gluer Machine Applicable Paper Width: 1,400-2,300 mm
Configuration:
1. The designed maximum operating speed is 220 m/min;
2. The glue roller and meter roller adopt modular and built-in design, they can be installed and removed from the operation side to facilitate repair and maintenance;
3. A pressure arm locking mechanism is provided to ensure stable and reliable operation performance of paper pressing roller (touch pressing plate) under high-speed operation state;
4. The gap between the glue roller and the meter roller can be automatically adjusted according to the speed, paper material and flute type;
5. The touch pressing mechanism for glue application is a paper pressing roller, and the gap between the paper pressing roller and the glue roller can be adjusted electrically to facilitate rapid changeover for processing cardboards with different flute types;
6. The glue pan is lifted pneumatically to facilitate cleaning. There are glue blocking plates installed at both ends of the glue pan to well prevent glue from splashing from the shaft ends during high-speed operation of the glue roller and meter roller;
7. Layered independent frequency conversion motor, synchronous belt transmission and relatively independent control are used in the power part to ensure the precision of transmission and to greatly reduce the vibration and noise during operation;
8. Layered independent adjustment and touch panel man-machine interface control are employed, so the adjustment and control are more flexible and directviewing;
9. The floating roller of the pre-heating cylinder is electrically adjustable (this function is optional to users) to facilitate paper passing through and adjustment of angle of contact.
GLD6A glue applying machine for 2-layer corrugated cardboard.
Paper Width |
External Dimensions (L×W×H) |
Weight (T) |
Whole Machine Power (kW) |
1,400 |
1,450×1,830×2,915 |
7.4 |
10 |
1,600 |
1,450×2,030×2,915 |
7.8 |
10 |
1,800 |
1,450×2,230×2,915 |
8.2 |
10 |
2,000 |
1,450×2,430×2,915 |
8.6 |
10 |
2,200 |
1,450×2,630×2,915 |
9.0 |
10 |
