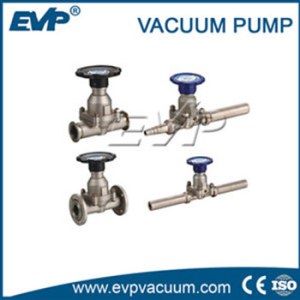

GM High Vacuum Diaphragm Valve

GM High vacuum diaphragm valve use valve rod to press rubber film directly on the valve seat, use to cut-off or connect Vacuum system. Connection form as: Lap joint flange connection, fast unload flange connection, weld type connection. Weld type connection is divided into weld I type connection(both end weld), weld II type connection(one end weld, another end insert). Applicable medium can be air and noncorrosive gases.

Main Technical Performance

applicable scope(Pa)

105~1.3x10-4

valve leak rate(Pa.L/S)

≤1.3x10-4

medium temperature(℃)

-25~+80(sealing material is chemigum)
-30~+150(sealing material Viton)

installation site

willfully

Lap joint flange connection and overall Dimensions(mm)

model

diameter(DN)

ΦD

ΦB

ΦW

H

L

n-ΦC

Flange standard

GM-10

10

46

36

55

75

75

4-Φ6

JB919

GM-25

25

70

55

90

115

120

4-Φ7

GB/T6070

GM-40

40

100

80

100

132

150

4-Φ9

GM-50

50

110

90

100

157

180

4-Φ9

Fast Unload Flange Connection and Overall Dimensions

model

diameter(DN)

ΦD

ΦB

ΦW

H

L

Flange standard

GM-10/KF

10

30

12.2

55

75

75

GB4892

GM-25/KF

25

40

26.2

90

115

100

GM-40/KF

40

55

41.2

100

132

150

GM-50/KF

50

75

52.2

100

157

180

/

Weld type connection and overall Dimensions

model

diameter(DN)

ΦD

ΦW

H

L

GM-10-H(Ⅰ)

10

19

55

75

150

GM-25H(Ⅰ)

25

32

90

115

200

GM-40H(Ⅰ)

40

45

100

132

240

GM-50H(Ⅰ)

50

57

100

157

240

GM-10H(Ⅱ)

10

9

55

75

150

GM-25H(Ⅱ)

25

19

90

115

200
