Grinding Wheel For CNC Tool Grinder
Quantité : 5000/month Prix : 0,10 €
Grinding Wheel For CNC Tool Grinder
CNC Tools Grinding Machine With A Very Excellent Stability And High Flexibility, It's Requirement For The Diamond & CBN Grinding Wheel For CNC Machine With High Efficient Grinding, Good Wear Resistance ,Good Shape Retention And High Material Removal Rate .
Details

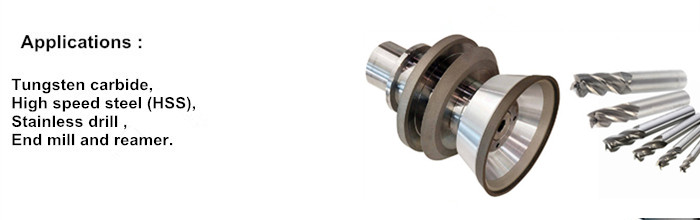

More SuperHard Diamond / CBN Grinding Wheel For CNC Tool Grinder Is Used For Tungsten Carbide, High Speed Steel (HSS), Stainless Drill ,End Mill And Reamer.
We Will Provide A Complete Solution For CNC Tools Manufacturing Process, Including Fluting, Gashing & Clear Edge, Relief Angle Grinding .
|
Fluting : Perfect Flute Surface Quality; Extremely High Stock Removal; Very Low Energy Consumption |
|||||
|

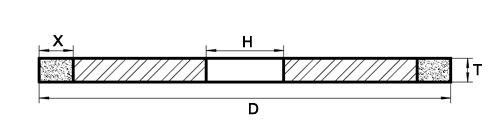

Type |
D(Mm) |
T(Mm) |
X(Mm) |
H(Mm) |
Grit |
|
|
75 |
10 |
5 |
20 |
D64 |
|
100 |
6/10/12 |
5/10 |
20 |
D46/D64 |
|
|
125 |
10/12/16 |
10 |
20 |
D46/D64 |
|
|
150 |
12 |
10 |
20 |
D64 |
|
|
|
D(Mm) |
T(Mm) |
X(Mm) |
H(Mm) |
V° |
|
75 |
10 |
5 |
20 |
45 |
|
|
100 |
10/15 |
5 |
20 |
45 |
|
|
125 |
6/10/15 |
5 |
20 |
45 |
|
|
150 |
12 |
5 |
20 |
45 |
|
|
14F1 (Flute For Drill) |
D(Mm) |
U(Mm) |
X(Mm) |
H(Mm) |
R |
|
100 |
4 |
6 |
20 |
2 |
|
|
125 |
3 |
5 |
20 |
1.5 |
|
|
150 |
1/5 |
5/7 |
20 |
0.5/2.5 |
|
|
Gashing & Clear Edge: The Production Of Superior Tool Edge Quality ;High Stock Removal; Maintaining Wheel Profile |
|||||
|
Type |
D(Mm) |
T(Mm) |
X(Mm) |
H(Mm) |
V° |
|
|
100 |
10/15 |
5/10 |
20 |
45 |
|
125 |
4/10/15 |
5/6/10 |
20 |
45 |
|
|
12V9 |
D(Mm) |
W(Mm) |
X(Mm) |
H(Mm) |
- |
|
75 |
3 |
10 |
20 |
- |
|
|
100 |
3 |
10 |
20 |
- |
|
|
125 |
3 |
10 |
20 |
- |
|
|
150 |
3 |
10 |
20 |
- |
|
|
Relief Angle Grinding: Excellent Surface Finish And The Best Profile Consistency;Excellent Edge Quality ;High Stock Removal At Second Relief |
|||||
|
11V9 |
D(Mm) |
W(Mm) |
X(Mm) |
H(Mm) |
- |
|
75 |
3 |
10 |
20 |
- |
|
|
100 |
2/3 |
10 |
20 |
- |
|
|
125 |
3 |
10 |
20 |
- |
|
|
* Other Specifications Can Be Produced According To Customers' Requirement. |
|||||
CNC Tools Grinder: Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann And So On.
Meanwhile, More Superhard Products Co,.Ltd Also Supplies Diamond Cutting Disc For Carbide Rods Cutting; Centerless Grinding Wheel For Carbide Bars; Silicon Carbide Wheel For Dressing CNC Grinding Wheel (Dressing Machines: Cleveland , Farman) And So On.
