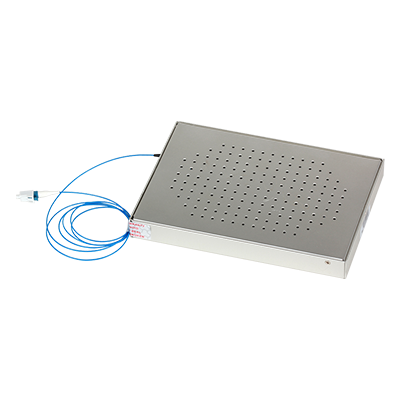

GW-4000 OTDR Module
Prix : 100USD
Functions
Small and high-performance mountable-type OTDR module, applicable to optical system monitoring
40/38/38dB
Dynamic range
<1.5m</span>
Event deadzone
<10m</span>
Attenuation deadzone
Features
Small and high-performance mountable-type OTDR module
Applicable to optical system monitoring
Parameter
|
Item |
Parameter |
|
Wavelength |
1310nm±20nm |
1550nm±20nm |
1625nm±20nm |
|
Fiber Type |
0.9mm, SM |
||
|
Dynamic Range |
40dB |
38dB |
38dB |
|
Attenuation Deadzone |
<12m</span> |
<10m</span> |
<10m</span> |
|
Event Deadzone |
<1.5m</span> |
||
|
Sampling Resolution |
0.05~4m |
||
|
Sampling Points |
128,000 |
||
|
Distance Accuracy |
±(1m+measuring distance×3×10-5+sampling resolution) |
||
|
Linearity |
±0.05dB/dB |
||
|
Laser Safety |
IEC 60825-1: 2007: CLASS 1 |
||
|
Power Supply |
DC 9~12V/2A |
||
|
Power Consumption |
6W |
||
|
Interface |
20PIN, 10/100M RJ45 port |
||
|
Serial Port |
RS232C: 115200bps |
||
|
Connector |
FC,SC,ST,LC (Customized) |
||
|
Working Temp |
-25℃~+60℃ |
||
|
Storage Temp |
-40℃~+70℃ |
||
|
Humidity |
0~95% |
||
|
Dimension/Weight |
116L×115W×19H/400g |
||
Grandway Telecom Tech provide complete telecom solutions, telecommunication solutions and etc. Thanks to the efforts of each colleague, our instruments and project soutions are recognized by world's leading telecom operators, ISP, and telecom solution providers.
