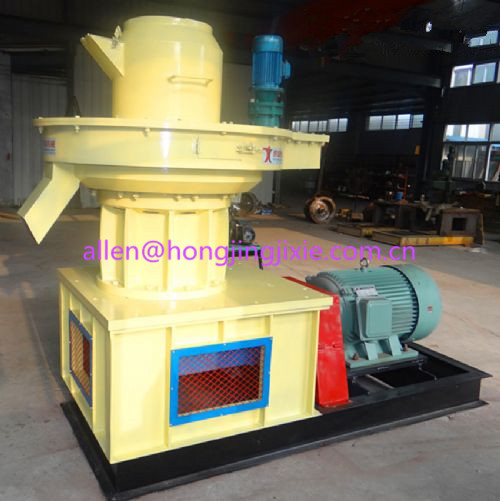

GZLH860 Ring die pellet mil applied to the materials with adhesiveness and shaping
Quantité : 100 Set/Se Prix : US $ 25,000 - 65,000
Quick Details
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: HJ
- Model Number: GZLH860
- Voltage: 380v,50hz,3 phases
- Power(W): 220kw
- Dimension(L*W*H): 3.3*1.4*3.1m
- Weight: 14000 kg
- Certification: CE&ISO9001
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- spare parts: ring die&double roller
- color: white,red,yellow or as your request
- application: animal feed, biomass fuel, fertilizer
- spare parts material: alloy steel
- spare parts service life: 700-900h
- capacity: 2-3t/h
- material size: 3-10mm
- raw material: sawdust, grain, grass,etc
- motor: Simens
- material moisture: 12-18%
Packaging & Delivery
| Packaging Details: | iron sheet packing or wooden box |
|---|---|
| Delivery Detail: | 7-15 days after receiving the desposite |
Specifications
1.power: 220kw
2.ring die
3.alloy steel
4.model: GZLH860



Product features
1 High efficiency centrifugal,high pressure,suitable for the materials with adheiveness and shaping.
2 Low wear rate,pressure roller die long service life.
3 Press roller adopting automatic lubrication system,continuous operating without stop.
4 Die using vertical structure,direct way in material,high efficiency,good heat dissipation.
5 Long service life of die : the die adopting the special alloy steel processing technology development,with the surface hard and wear resistant and tough heart,has the high impact toughness at low temperature.
6 High performance and high cost effective: on the basis of the same kind of equipment ,the equipment increase the technology and the function.our company considers the masses of users who bear the highest price,especially farmers.


| Model | Die Diameter(mm) | Capacity crude fiber (t/h) | Power (kW) | Weight (t) | Dimension (m) |
Temperature (°C) |
Picture |
| GZLH460 | Φ3-20 | 0.8-1.0 | 75 | 4 | 2.6*1.2*2.3 | 70-90 |
![]() |
| GZLH560 | Φ3-20 | 1.2-1.5 | 90 | 6.1 | 2.6*1.3*2.3 | 70-90 | |
| GZLH860 | <span style="margin: 0px; padding: 0px; border: 0px; font-family: tahoma, arial, helvetica, sans-serif; font-size:16px; |
