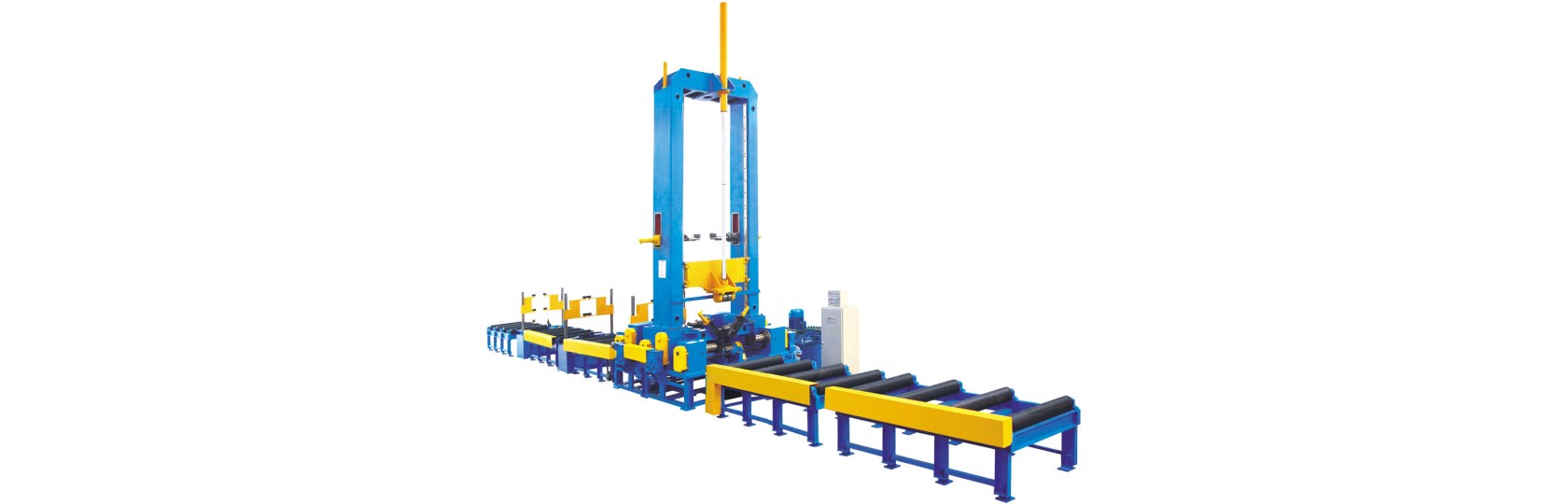

H-Beam Assembling Machine

The clamping and alignment of the web plate and flange plate will be done in h beam assembly machine, there also have automatic tack-welding. Jinggong H-Beam Assembling Machine consists of an alignment system, conveyor rolls, hydraulic and electrical systems, etc. The upper pinch roller adopts two or four groups of rails which will ensure stable assembling and easy operation.

Max. length of H-beam assembly machine can be 15m, and max. speed up to 6m/min. We can design and manufacture different specifications according to the different requirements of the client.

Size of raw materials required for H-Beam Assembling Machine:

Web height: 200-1800 mm

Web thickness: 6-70 mm

Flange width:200-800 mm

Flange thickness: 6-80 mm

Workpiece length: 4000-15000 mm

Special features About H-Beam Assembling Machine

Compact structure: main transmission system is put inside of the main machine, which could save space, also is convenient for operation and maintenance.

Main transmission system is composed of one set of motor and retarder, to ensure the synchronization and efficiency by chains and gears' driven work.

This machine is easily operated and simply adjusted.
