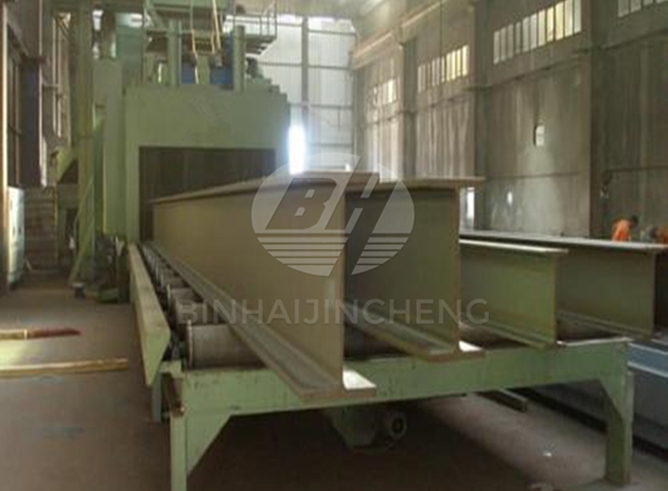

H Beam Shot Blasting Machine
Prix : 5000-50000USD
This series belongs to roller shot blasting machine, mainly used for buildings, bridges and other industries with large I-beam, H-beam steel structure such as size pieces of high stress and the elimination of cleaning the surface rust.
Specification of H Beam Shot Blasting Machine
|
Item |
Unit |
QH698 |
QH6912 |
QH6915 |
QH6918 |
|
Effective cleaning width |
mm |
800 |
1200 |
1500 |
1800 |
|
Room size body feed inlet size |
mm |
1000x1700 |
1400x1700 |
1700x1700 |
2000x1800 |
|
Length of the workpiece |
mm |
1200-12000 |
1200-13000 |
1500-13000 |
2000-13000 |
|
Workpiece size |
mm |
800x1500 |
1200x1500 |
1500x1500 |
1800x1600 |
|
Transmission speed (no-load speed) |
M/min |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
|
Shot volume abrasive flow rate |
Kg/min |
8*180 |
8*180 |
8*250 |
8*250 |
|
The first time loading capacity |
kg |
4000 |
5000 |
5000 |
6000 |
|
Ventilation |
M³/h |
20000 |
22000 |
25000 |
25000 |
|
Total power (without dust collector) |
Kw |
125 |
130 |
180 |
180 |
Features of H Beam Shot Blasting Machine
Clean surface rust
Improve corrosion resistance
Improve anti-fatigue performance
Extend steel service lifetime
Make the steel surface craft performance
Remove Internal stress
Reduce labor intensity
As one of the leading shot blasting companies, Qingdao Binhai Jincheng Foundry Machinery Co., Ltd. provide concrete floor shot blasting equipment, abrasive shot blasting, media blasting supplies and etc. Contact us to know more.
