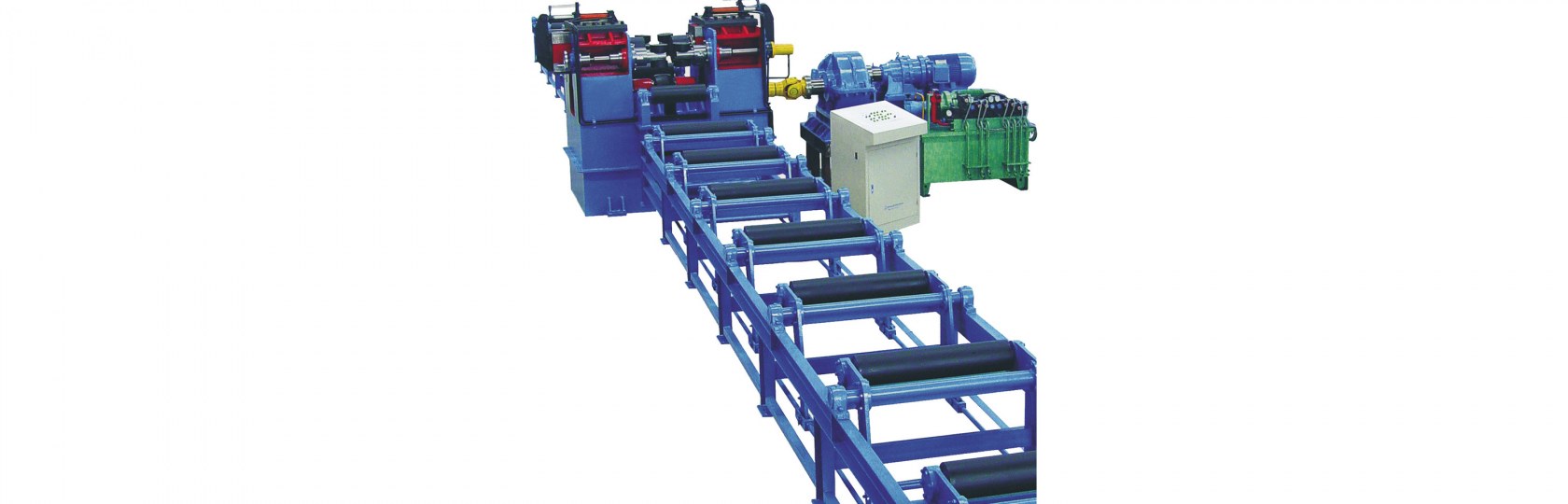

H-Beam Straightening Machine
Quantité : 5000 sets Prix : USD5,000.00-USD3,000
H-Beam Straightening Machine is mainly used for the angle distortion straightening of heavy H-beam, it adopts hydraulic straightening which will have a strong straightening force and large straightening range and with high working efficiency and good quality.
We can design and manufacture different specifications of H-Beam Straightening Machine according to the different requirements of the client.
The suitable feeding materials for the straightener:
flange thickness: 8-60 mm
flange width:180-800 mm
web height: 350 mm
web thickness: 8-40 mm
H beam bending machine is mainly used for the angle distortion straightening of heavy H-beam, it adopts hydraulic straightening which will have a strong straightening force and large straightening range and with high working efficiency and good quality.
We can design and manufacture different specifications of H-Beam Straightening Machine according to the different requirements of the client.
The suitable feeding materials for the straightener:
flange thickness: 8-60 mm
flange width:180-800 mm
web height: 350 mm
web thickness: 8-40 mm
Parameters Of H-Beam Straightening Machine
Item |
Parameters |
|
Model |
JJZ60B |
JJZ80B |
Flange plate width (mm) |
180-900 |
200-1000 |
Minimum web height (mm) |
≥350 |
≥350 |
High pressure correcting force (Kn) |
1500 |
2800 |
Corrected material thickness (mm) |
Q235≤0 Q345≤60 |
Q234≤100 Q345≤80 |
Max.straightening speed (m/min) |
5.5 |
6 |
Total Power (Kw) |
26 |
37 |
Special Features About H-Beam Straightening Machine
H type steel after welding, because of thermal expansion, the flange plate will bend, the JJZ60B straightening machine is special equipment used for the angle distortion straightening of heavy H beam. It is easy to operate, simple maintenance, high working efficiency, etc. It is widely used in metal structure industrial sectors such as huge building, water conservancy and bridge, metallurgical industry etc.
Jinggong is a professional roll forming machine manufacturer that has many years' experience and a lot of successful cases. Zhejiang Jinggong Science and Technology Co., Ltd. have got many positive reviews regarding this roll forming machine. If you want to know more, please contact us now!
