H-Beam Welding Line
Quantité : 5000 sets Prix : USD5,000.00-USD3,000

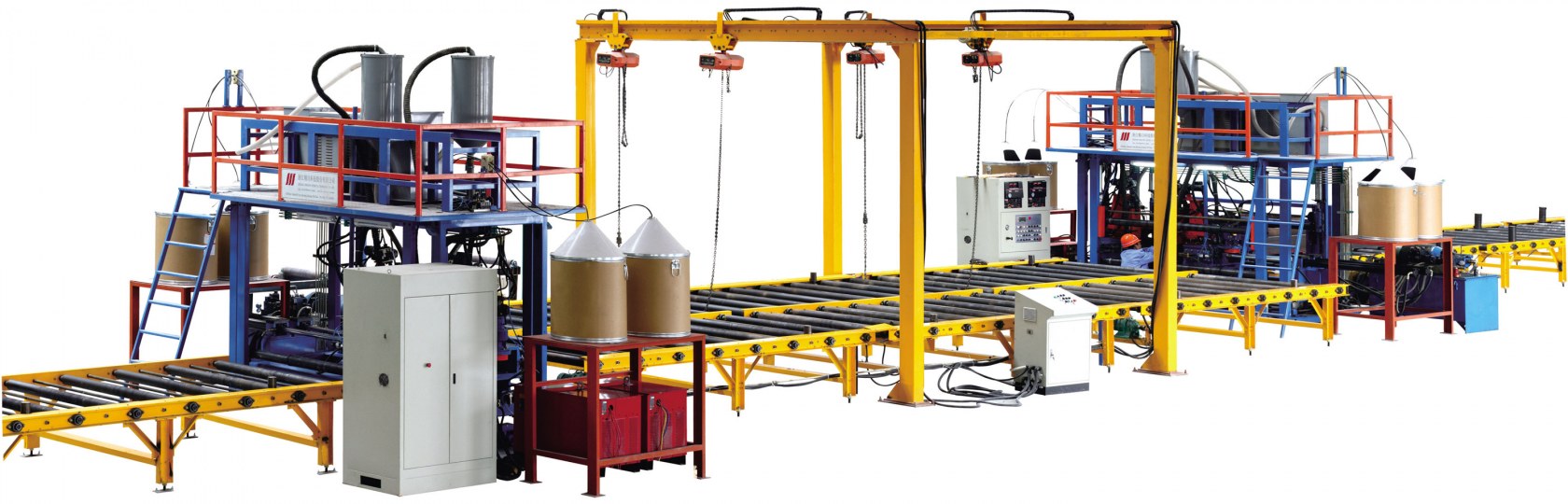

H beam machine consists of an assembling machine, front welding machine, turn-over device, back welding machine and the transmission conveyors. It is used to assemble the H-beam,180°turn-over and transmit, etc. The annual welding capacity is 8000 tons. The Max welding speed can reach about 2m/min. Regularly, we adopt Lincoln welding machine (DC-1000) and NA-5 control system.
JH-150A welding line for H-profile steel is a wonderful technical product that integrates mechanical, electric, and pneumatic technologies. The machine, using advanced technology of single-arc double-wire welding, greatly increases the production efficiency.
The half line and whole line of H-Beam Welding Line Machine are different. The whole production line includes the turnover device and a second welder and it's related roller conveyor, while the half production line doesn't include the above-mentioned parts.
h beam welding line, which is developed by Zhejiang Jinggong Science and Technology Co., Ltd., achieves the quality production of H-beam. It's the most advanced H-beam equipment domestically. H-beam welding line consists of the assembling machine, main welder, turnover device, and conveyor, etc.
H beam welding line is very well received and widely applied by most steel structural enterprises for its high efficiency, big production scope, easy operation, and small space, etc.
Technical Parameter Of H-Beam Welding Line
|
Item |
Parameters |
||
|
H-beam specs |
(mm) Web width |
300-1200 |
300-1500 |
|
(mm)Web thickness |
3-10 |
3-12 |
|
|
(mm)Flange width |
150-500 |
||
|
(mm)Flange thickness |
5-16 |
5-20 |
|
|
(mm) H-beam length |
4000-15000 |
||
|
(kg) H-beam weight |
4000 |
||
|
Inclination of H-beam |
≤15° |
||
|
Total Power |
64KW+90KVA×4 |
||
Size Of Raw Materials Required For H-Beam Welding Line
Web height: 250-1500mm
Web thickness: 3-12mm
Flange width:560px's able to produce sectional incline H-beam
Jinggong is a professional roll forming machine manufacturer that has many years' experience and a lot of successful cases. Zhejiang Jinggong Science and Technology Co., Ltd. have got many positive reviews regarding this roll forming machine. If you want to know more, please contact us now!
Personne à contacter : Wang Sue, 0575 84138681
Bonne affaire : acheter au vendeur
