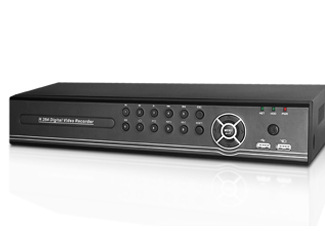

H264 16ch cms viewer for dvr
Détails
Chine (Rép. pop) High Tech
High Tech

H264 16ch cms viewer for dvr

Quantité : 10000 piec   Prix : 62USD/pieces

Detailed Product Description

laptop dvr software
PTZ protocol: 1*RS485
Power supply: DC12V
h264 dvr software
Support VGA output

H264 16ch cms viewer for dvr

Main Feature:

1.Vedio input/output: 16ch BNC input, 1ch BNC CVBS output;

2. Resolution: support 16ch CIF;

3.Audio input/output: 4ch RCA input,1ch RCA output;

4. PTZ: RS485(support);

5.HDD: support 2 SATA,up to 2TB;

6. communic protocal: TCP/IP, UDP,HTTP,LAN,DHCP, DDNS, DNS, PPPoE, SMTP;

7.remote software : Remote Client ,IE Brower,Mobile,CMS,Firefox,Google Chrome,Mac Safari;

8. free accounting software ;

CH h 264 cctv dvr, full D1, free CMS, mobile/IE surveillance

etwork 3g mini Multi-language OSD dvr

Model JYD584002C
usd
system Main professor High performance embedded microcontroller HUAWEI HI3515
Operating system Embedded LINUX
System resources Multi-channel real-time recording, playback, multi-channel network, USB backup
Interface Operation interface 16-bit true color graphical menu interface and mouse support
Menu display 1/4/16 screen
Video Video standards PAL(625line,50f/s); NTSC(525 line,60f/s)
Video Recording D1: PAL 1f/s-25f/s NTSC 1f/s-30f/s
Video compress standard H.264 Mainprofile
Code ability 100/120fps(D1);16CH 200/240FPS(CIF),
Motion detection Zones: 396(22*18)detection zones,Sensitivity: 1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
Audio Audio compression G711A
Bidirectional talk Support
Record and playback Recording mode Manual>alarm>Dynamic Detection>Time
Playback One channel or multi-channel playback (16 channel max synchronized playback)
Search mode Time/Date, Motion detection and exact search(according to second)
Storage and Backup Space Occupation Audio: 28.8MB/H+Video: 25~450MB/H
Video storage Hard disk, network
Backup mode Network download/USB/SATA HDD
Interface Video input 16 channel
Video output 1 channel BNC,1.0Vp-p,75Ω, 1channel VGA
Loop output Not support
SD interface Not support
Audio input 4 channel
Audio output 1channel RCA,200-3000mV,5KΩ
Network interface RJ45 10M/100M
PTZ control Support almost all the PTZ protocol
USB interface 3port
Hard disk 1 SATA port(max 2048G),16ch support 2hdd
Other Power supply 12V/3A,16ch used 12V/4A
Power consuption <10W(without hard disk)</td>
Work temperature 0°C-+55°C
Work humidity 10%-90%
Atmosphere pressure 86kpa-106kpa
Net Weight/pcs 2.2KG
G.W./pcs 2.7KG
Dimension 330*250*60MM
Inner box Dimension 430*110*300MM
Case Dimension 56.5*44*37CM

H264 16ch cms viewer for dvrH264 16ch cms viewer for dvr

Localisation : B06, 9th Floor, Shangshuijing Commercial Building, Buji Town, Longgang District, Shenzhen, Guangdong, China (Mainland), 518033 buji,
Personne à contacter : sam lin, 86 0755 28274716
