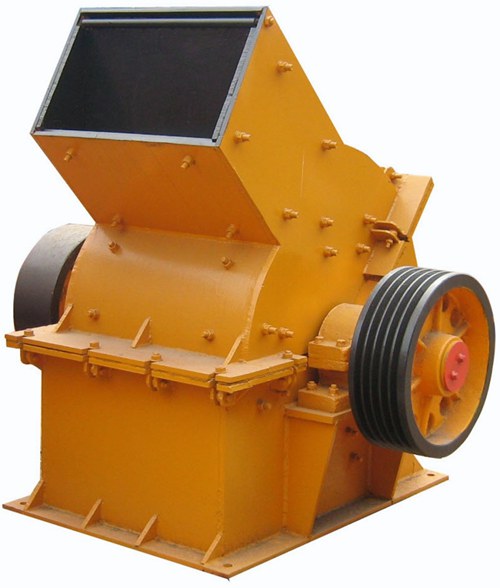

Hammer Crusher
Quantité : 500 PER MO Prix : 200-500US dollors ac
This product breaks up materials through the fast rotating ram and materials. It has simple structure, big crushing ratio, and high production efficiency, etc. LIWEI hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining cement, coal, metallurgic material, construction material, highway, burning, etc. This equipment can adjust to the cleft and the discharging granularity as the customers request to satisfy different needs.
Working principle:
For hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them; the crushed produces meeting the required size can be discharged by the outlet and the final products.
PRICE: 100-1000US DOLLORS ACCORDING TO YOUR QUANTITY.
Main technical parameter:
|
Model |
Turn sub-work mm |
Speed (r/min) |
Feed Size (mm) |
Max. Feed Size mm |
Product Size (mm) |
Capacity (t/h) |
Power (kw) |
Wt (t) |
Over dimension (mm) |
|
Φ400×400 |
Φ400/400 |
1500 |
145×450 |
≤100 |
≤10 |
5-8 |
7.5 |
0.9 |
844 ×942×878 |
|
Φ600×400 |
Φ600/400 |
1000 |
295×450 |
≤100 |
≤15 |
10-12 |
18.5 |
1.03 |
1054×972×1117 |
|
Φ600×600 |
Φ600/600 |
1000 |
295×570 |
≤100 |
≤15 |
12-18 |
45 |
2.14 |
1315×840×1501 |
|
Φ800×600 |
Φ800/600 |
1000 |
350×570 |
≤120 |
≤15 |
20-25 |
55 |
2.45 |
1515×2586×1040 |
|
Φ800×800 |
Φ800/800 |
1000 |
350×750 |
≤120 |
≤15 |
35-45 |
55 |
3.05 |
1515×2831×1040 |
|
Φ1000×800 |
Φ1000/800 |
1000 |
580×850 |
≤200 |
≤15 |
25-40 |
110 |
6.5 |
3206×2210×1515 |
|
Φ1000×1000 |
Φ1000/1000 |
1000 |
580×1060 |
≤200 |
≤15 |
40-80 |
132 |
7.59 |
3514×2230×1515 |
|
Φ1250×800 |
Φ1250/800 |
750 |
650×850 |
≤200 |
≤15 |
20-50 |
132 |
11.7 |
2630×1780×2050 |
|
Φ1250×1250 |
Φ1250/1250 |
750 |
650×1330 |
≤200 |
≤20 |
90-110 |
185 |
13.2 |
2630×2180×2050 |
|
Φ1400×1400 |
Φ1400/1400 |
750 |
1050×1540 |
≤250 |
≤20 |
120-170 |
280 |
17.2 |
2790×2800×2310 |
|
Φ1600×1600 |
Φ1600/1600 |
600 |
1500×1785 |
≤350 |
≤20 |
220-280 |
450 |
22.8 |
3350×31 |
